AC Remote Control Traffic Signal System- #RCN3

Description

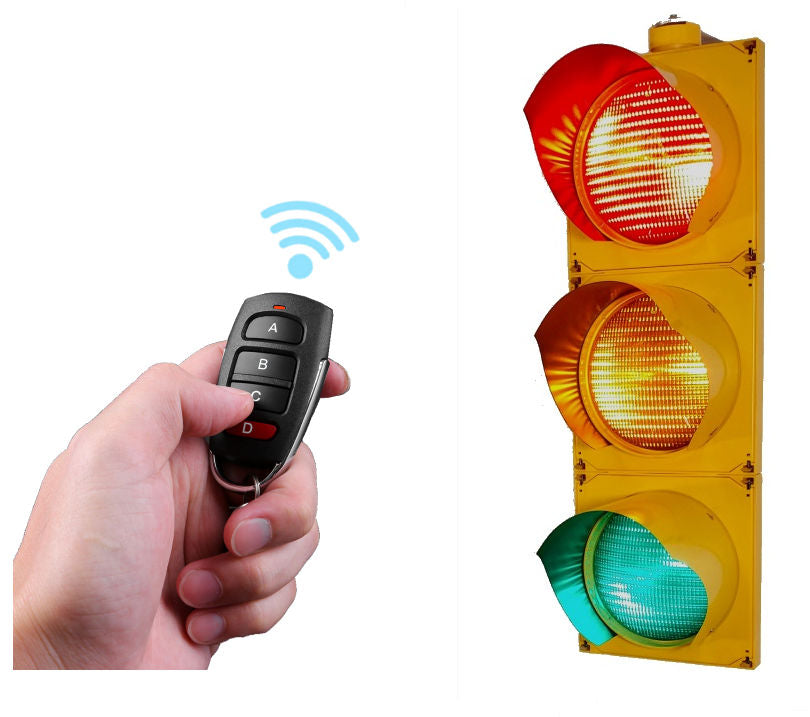

Remote Control Traffic Signal System

This control board will convert your traffic light display to remote control operation.  It is easy to install inside any standard AC traffic signal.   It offers direct control of any light color as well as flashing modes.   These can be used as safety status indicators as well as industrial signaling purposes.

• Operates directly from 120VAC/60Hz (+/- 20%)
• 150W max lamp (incandescent or LED)
• >100' operating range under line of sight conditions
• Small 2x3 inch foot print fits any signal housing

• 2 year limited MFG warranty

Kit includes :

• Qty 1: RCN3 Control Board with Antenna Receiver
• Qty 2: Four Button Remote [ABCD key fob style]
• Qty 4: Adhesive sticky feet for mounting the circuit board.

Features 4 different operation modes:

1. Standard Manual mode (A) Red, (B) Yellow, (C) Green buttons to select individual lights. Pressing a second time will toggle the flashing of that same color. The (D) Advance button will step the light through all colors.

2. Automatic Cycle mode - Fast - The (D) button will start the auto cycle loop from the flashing mode.

3. Automatic Cycle mode - Slow - Same as above but with a slower cycle.

4. Multi-Light mode - Lights will toggle on and off with each press of the button. Pressing the (D) button will toggle flashing mode for any light(s) that are currently on.

RCN3 Instruction sheet

RCN3 Wiring diagram
