AFAC2-Alternating Flasher

Description

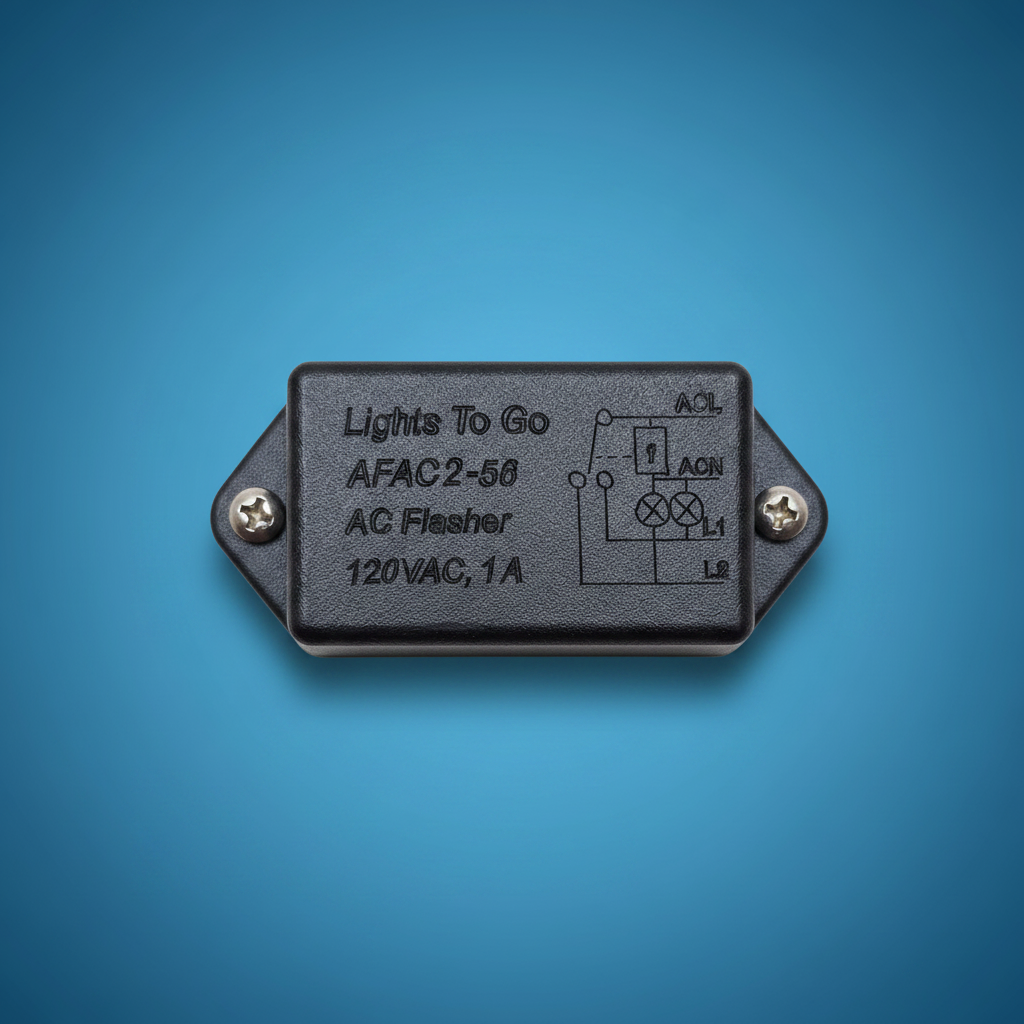

AC 2 Channel Alternating Flasher —

Model AFAC2

120VAC Wig-Wag LED Signal Flasher — Made in USA

Compact, fully encapsulated 2-channel AC flasher built for LED signals. Totally silent, sealed, and solid state with zero cross switching. Replaces many discontinued products including FS126, FS491, DFS154, 4210, and more.

Features Include:

• 120VAC LED signal wig-wag flasher
• 2 AC output channels with zero cross switching
• High surge current capability — flashes up to 2 pairs (4 LED) signal modules
• Very low power consumption

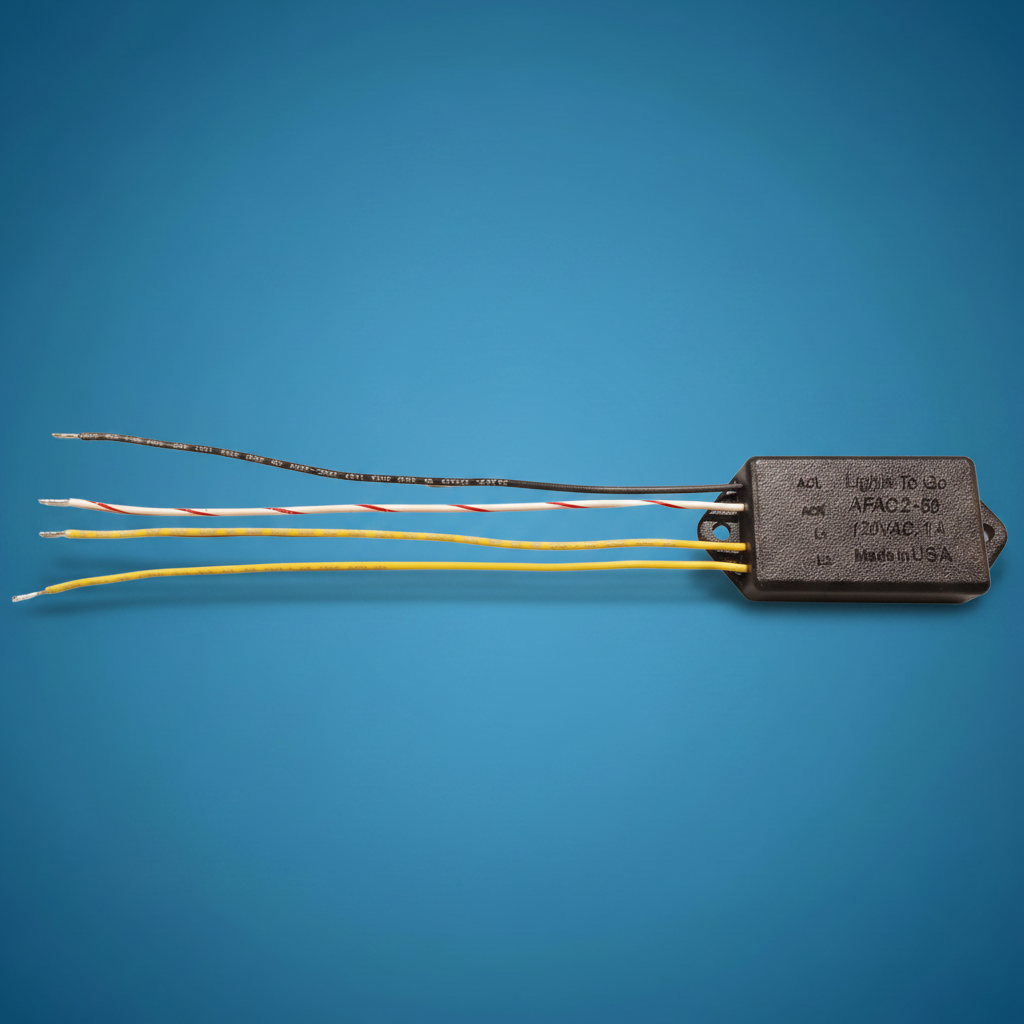

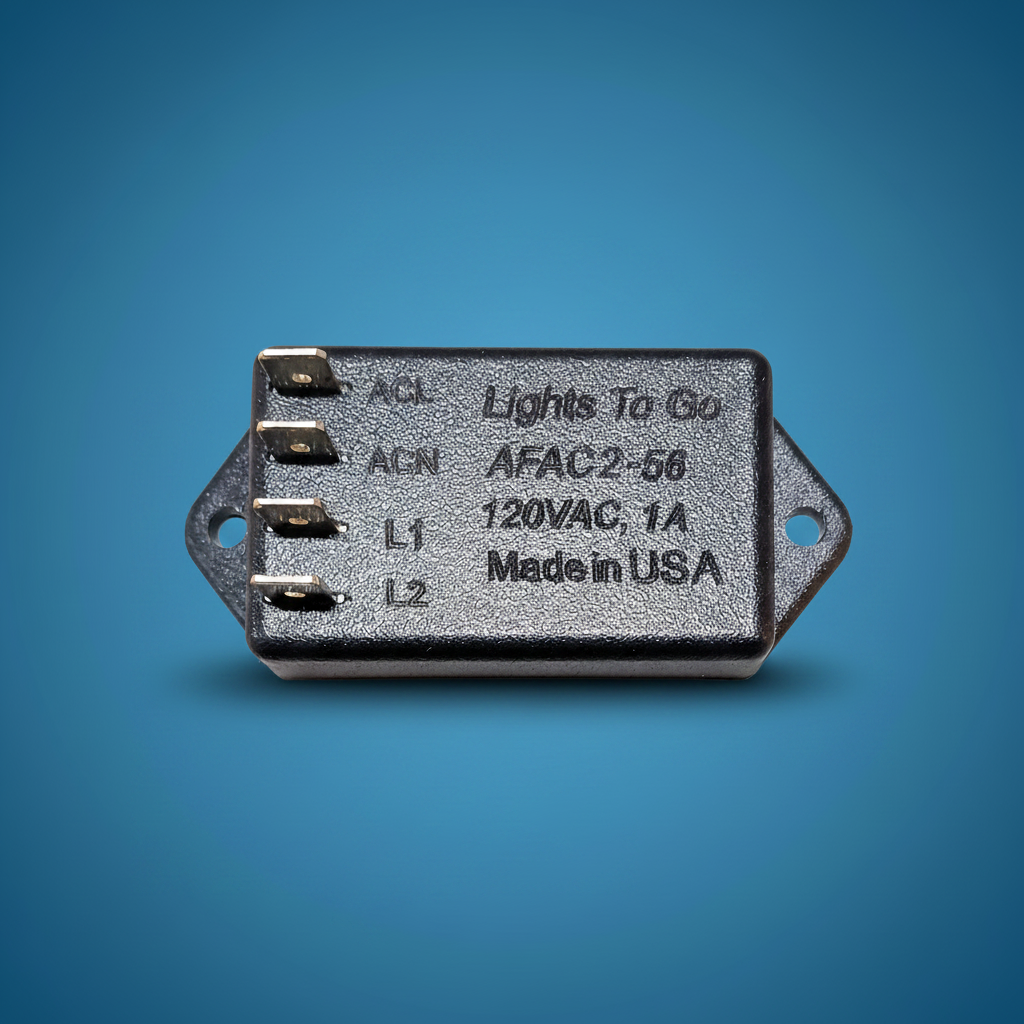

• Easy wiring with 4 lead wires or .25" quick-connect brass tabs (available by request)

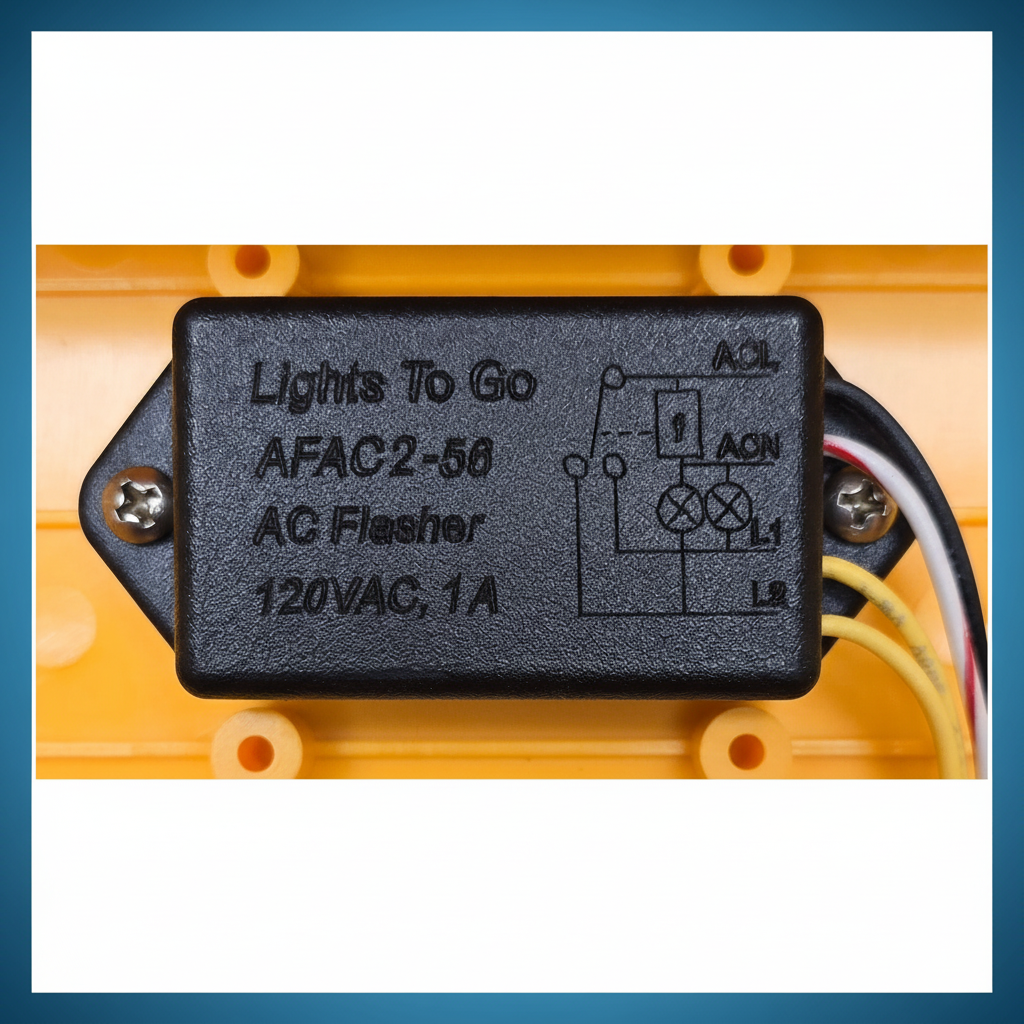

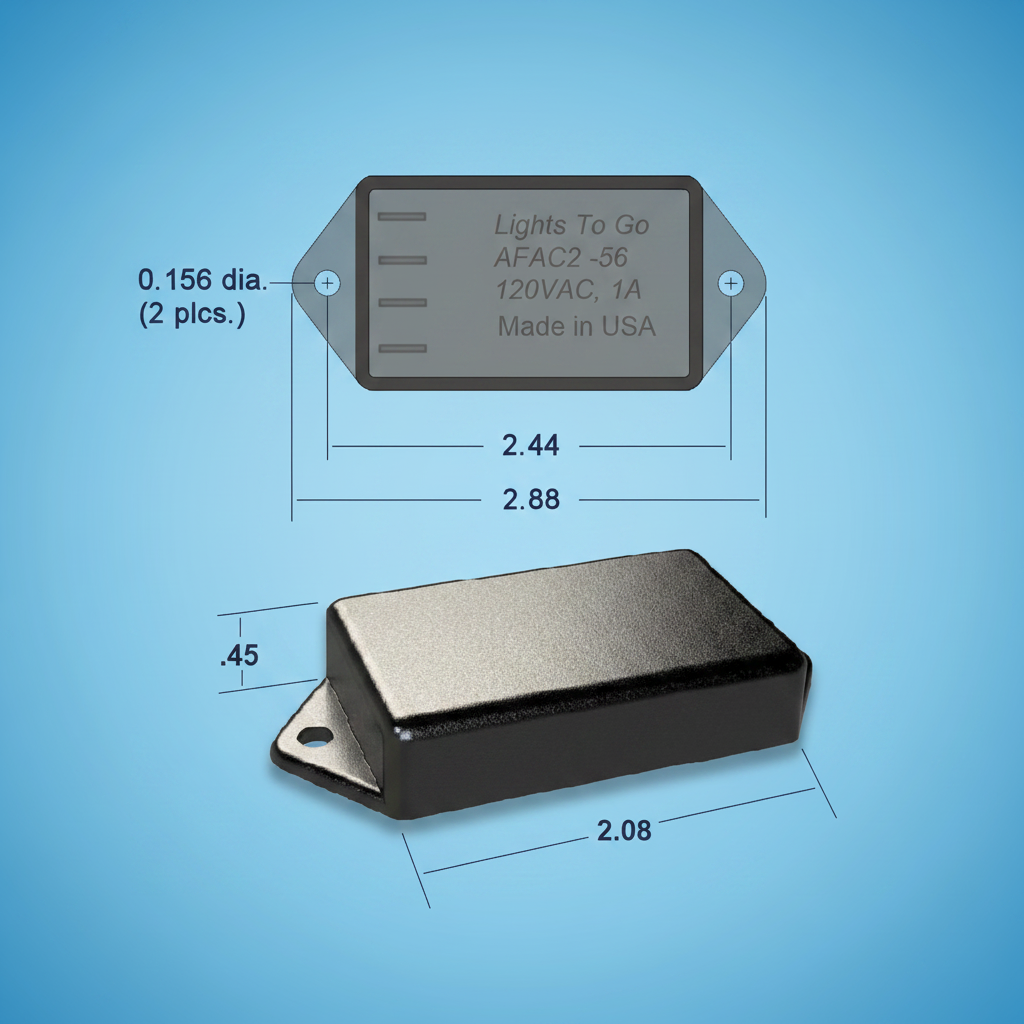

• Flange mount with 2 screws (#6/M4)
• IP67 rated, fully encapsulated ABS enclosure
• Long lifetime — Made in USA

Specifications:

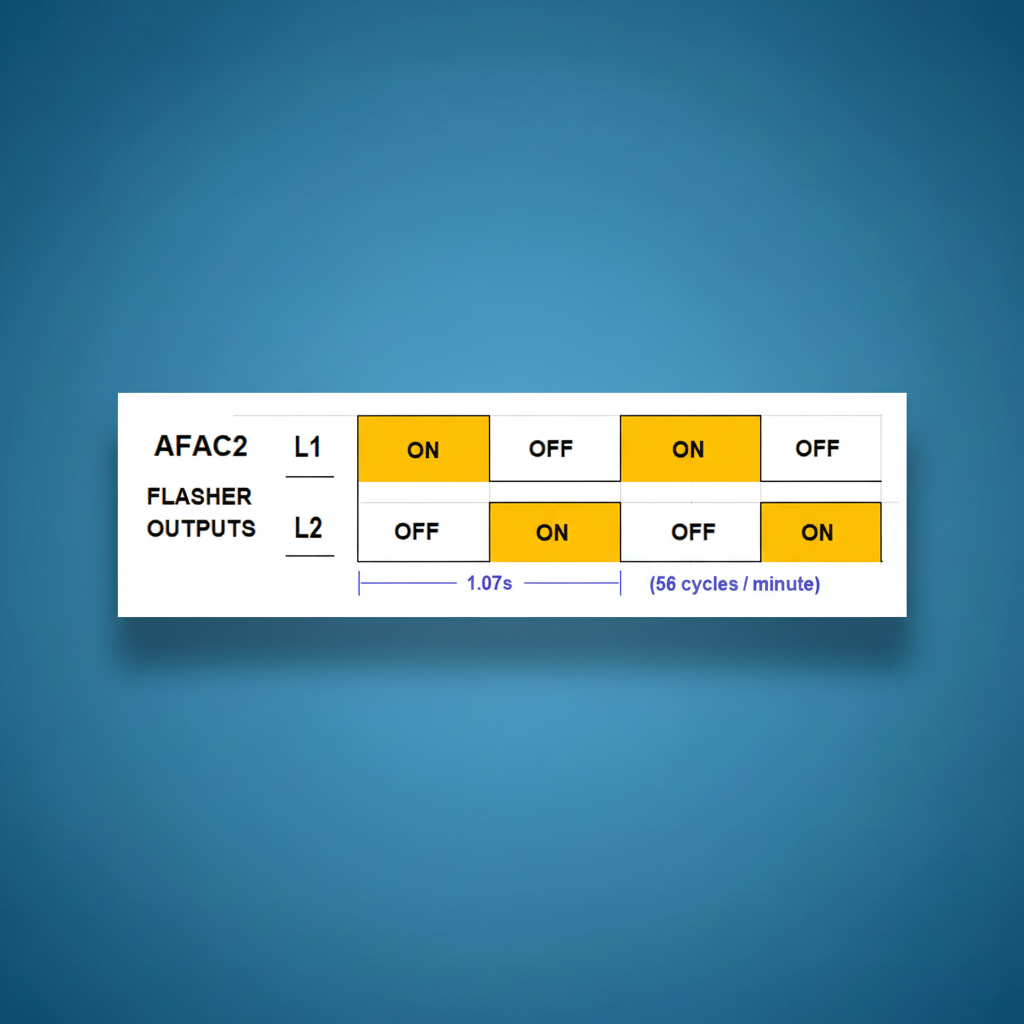

• Flash rate: 56 FPM (nominal) — MUTCD compliant roadway standard
• Timing: Alternate flash, 50% duty cycle
• Power: 120VAC, 50/60Hz, <200mW
• Output rating: 2x 1A max AC load, 20A peak inrush
• Output type: Line synchronous, zero voltage crossing — Triac switch
• Temperature rating: -30°C to +70°C (-20 to 160°F)
• Mass: <30 grams

Download the AFAC2 Spec Sheet (PDF)

Download the AFAC2 Wiring Diagram (PDF)

Product on the shelf subject to prior sale.

Contact us for pricing and availability: 316.409.4911
