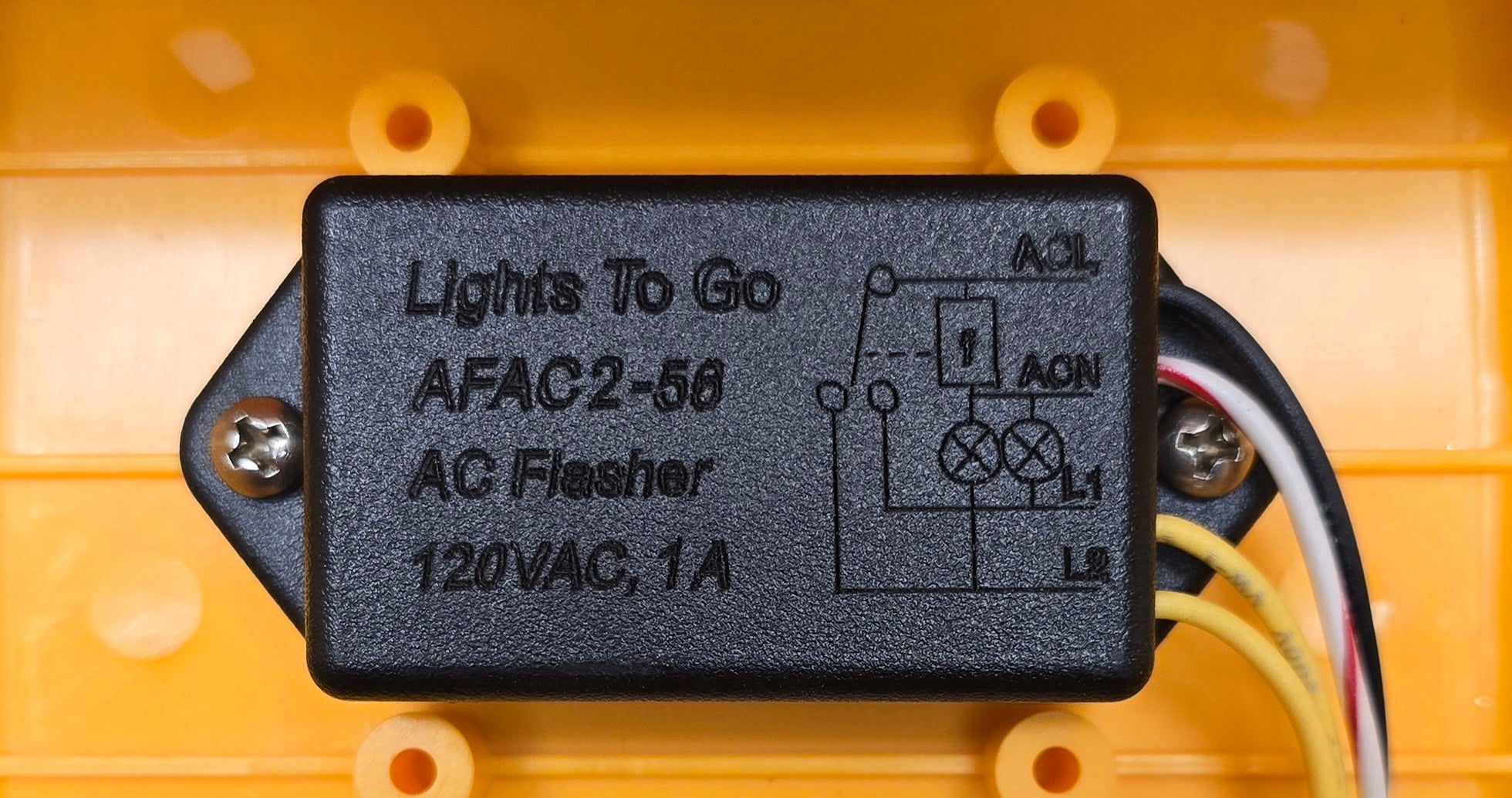

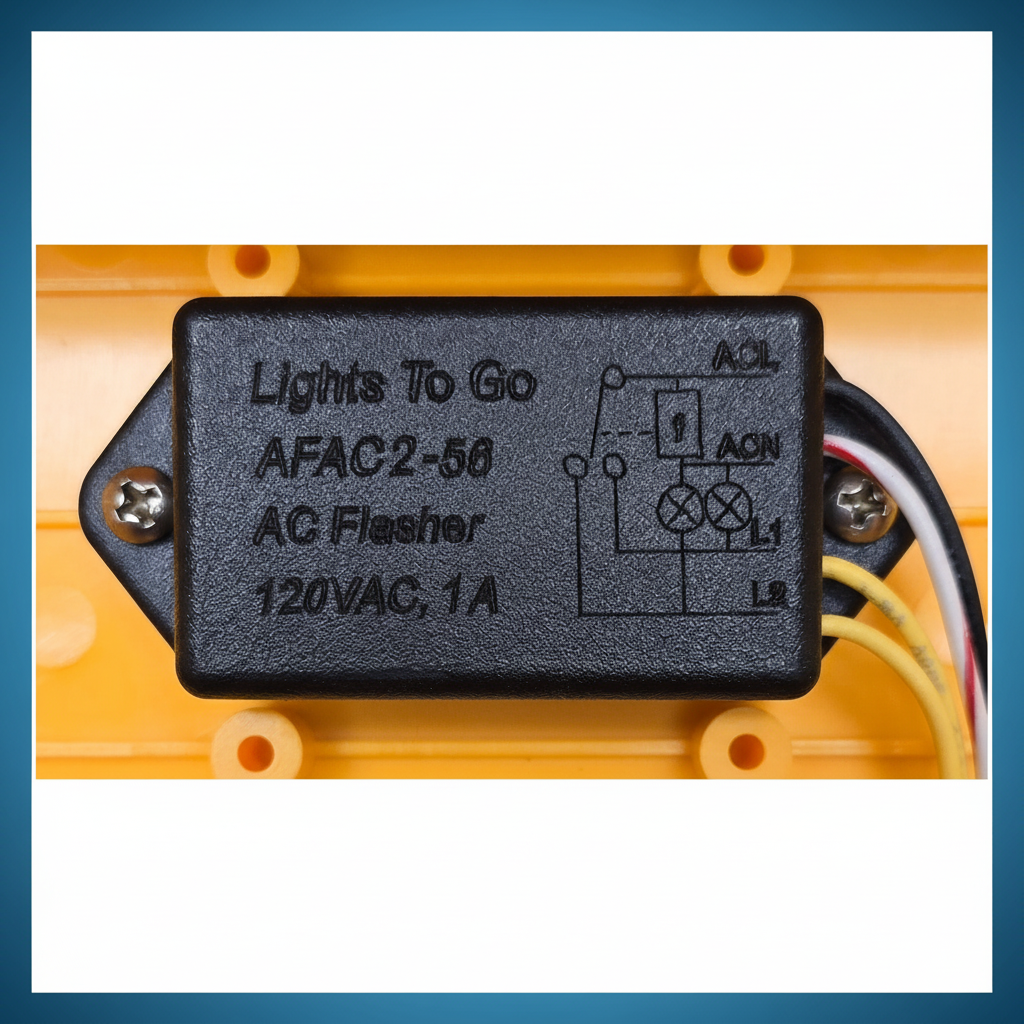

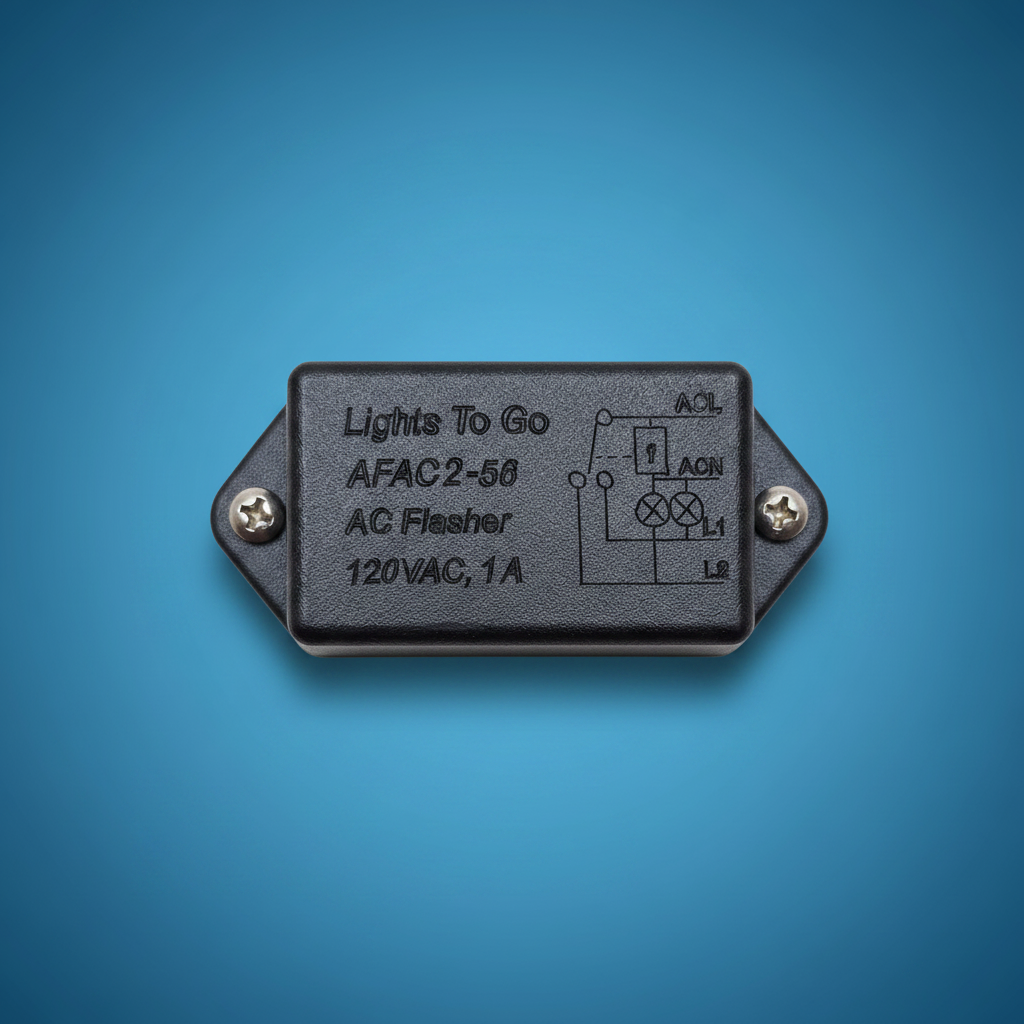

AC 2 Channel Alternating Flasher-#AFAC2

Description

AFAC2 Alternating Flasher Features:

• 120VAC LED Signal wig-wag Flasher
• Compact, easy to mount package
• Fully encapsulated for high reliability
•2 AC Output channels w/ zero cross switching
• Very low power consumption
• Totally silent, sealed & solid state
• Easy wiring w/ 4 lead wires -or- .25" quick connect, brass tabs version available
• High surge current capability. Built to flash up to 2 pairs (4 LED) signal modules
• Long lifetime - Made in USA

AFAC2 Flasher Specifications:

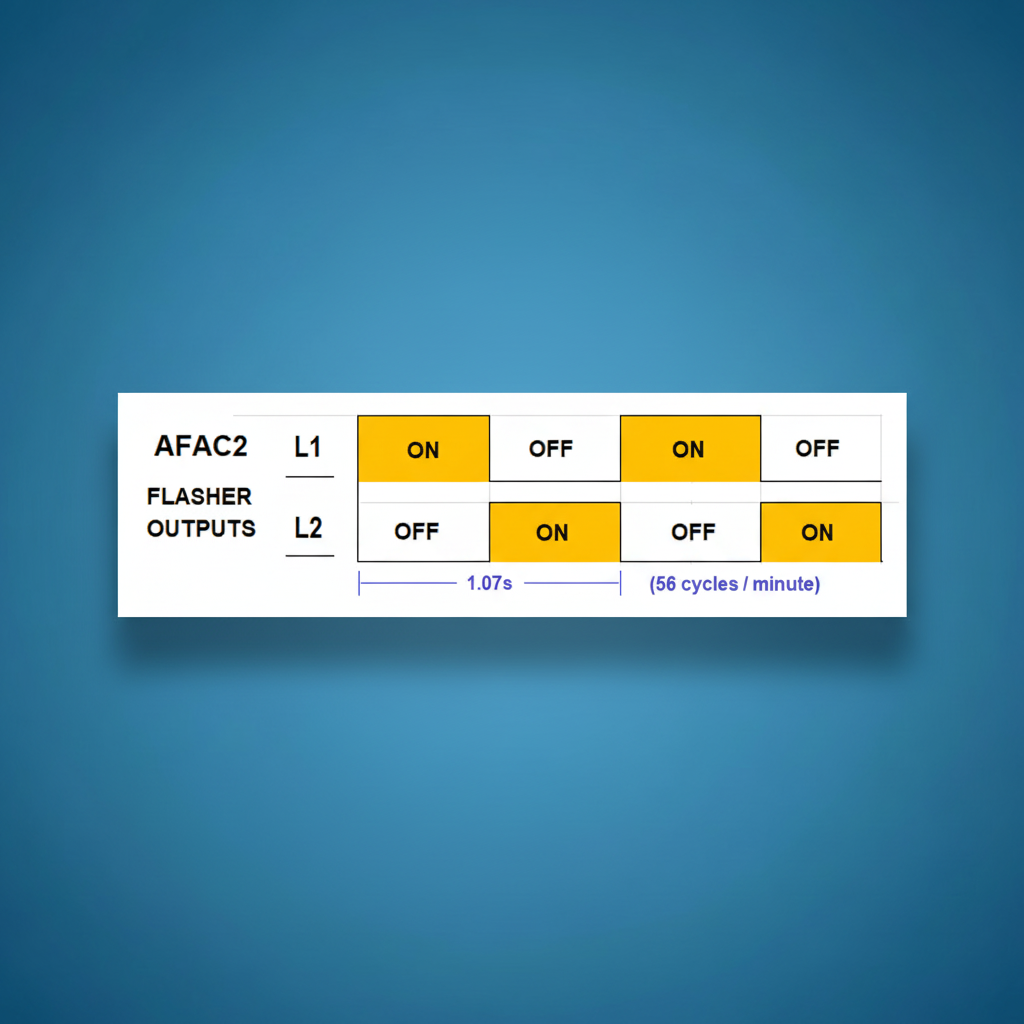

Timing Action: Alternate flash, 50% Duty Cycle
Flash Rate: 56 FPM (nominal),  MUTCD compliant roadway standard
Power: 120VAC, 50/60hz,<200mW
Output Rating: 2x 1A  Maximum AC Load 20A Peak in rush rating
Output Type: Line synchronous, zero voltage crossing – Triac switch

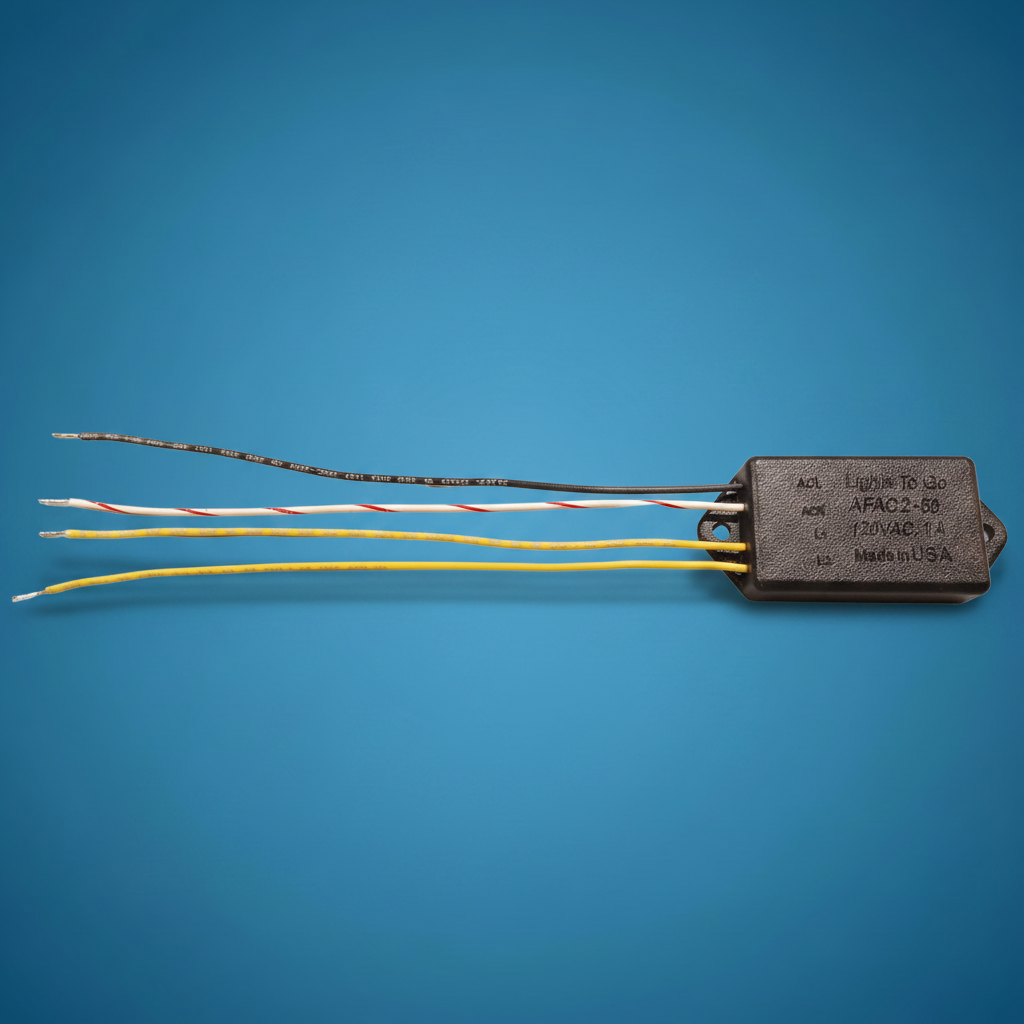

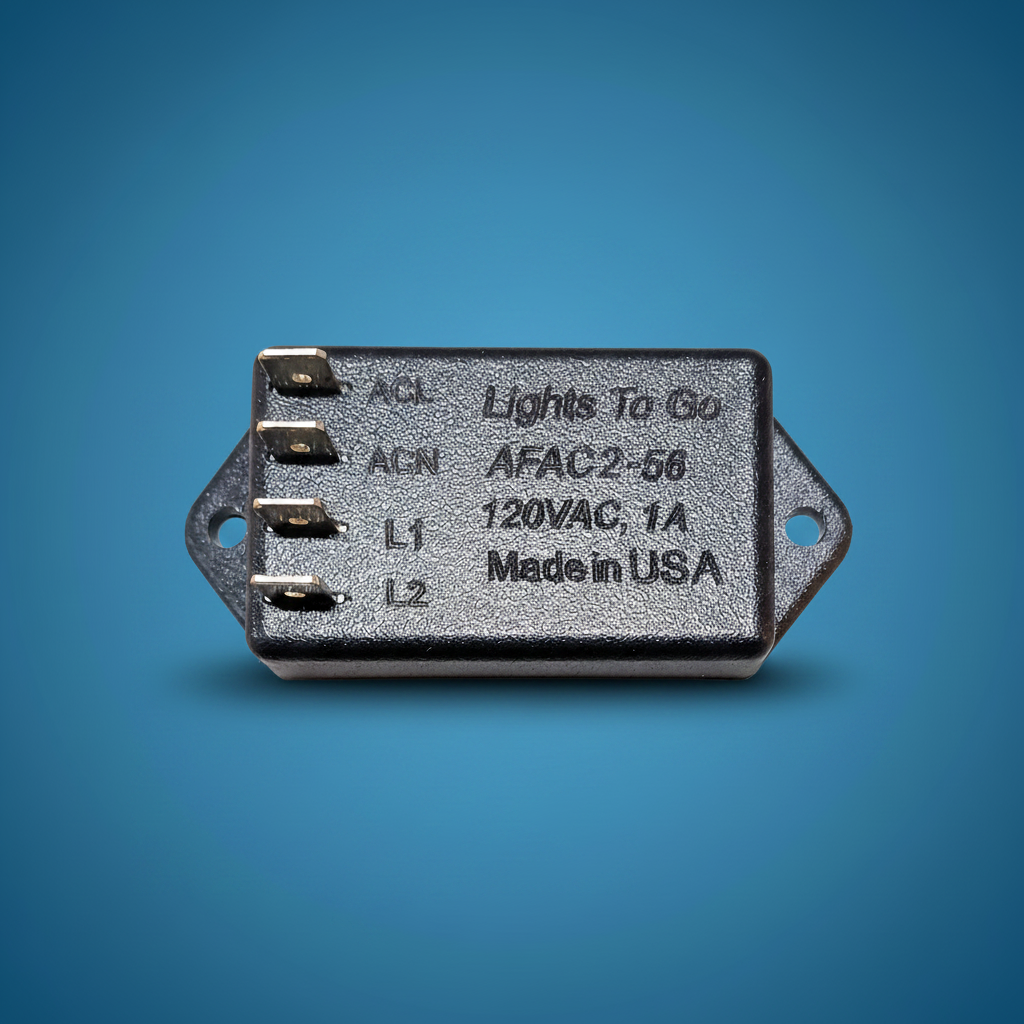

Connection Terminals: 4x 6 inch (15cm) wire leads -or- .250 quick connect, brass tabs version available upon request
Temp. Rating: -30C to+70ºC (-20 to 160º.F)

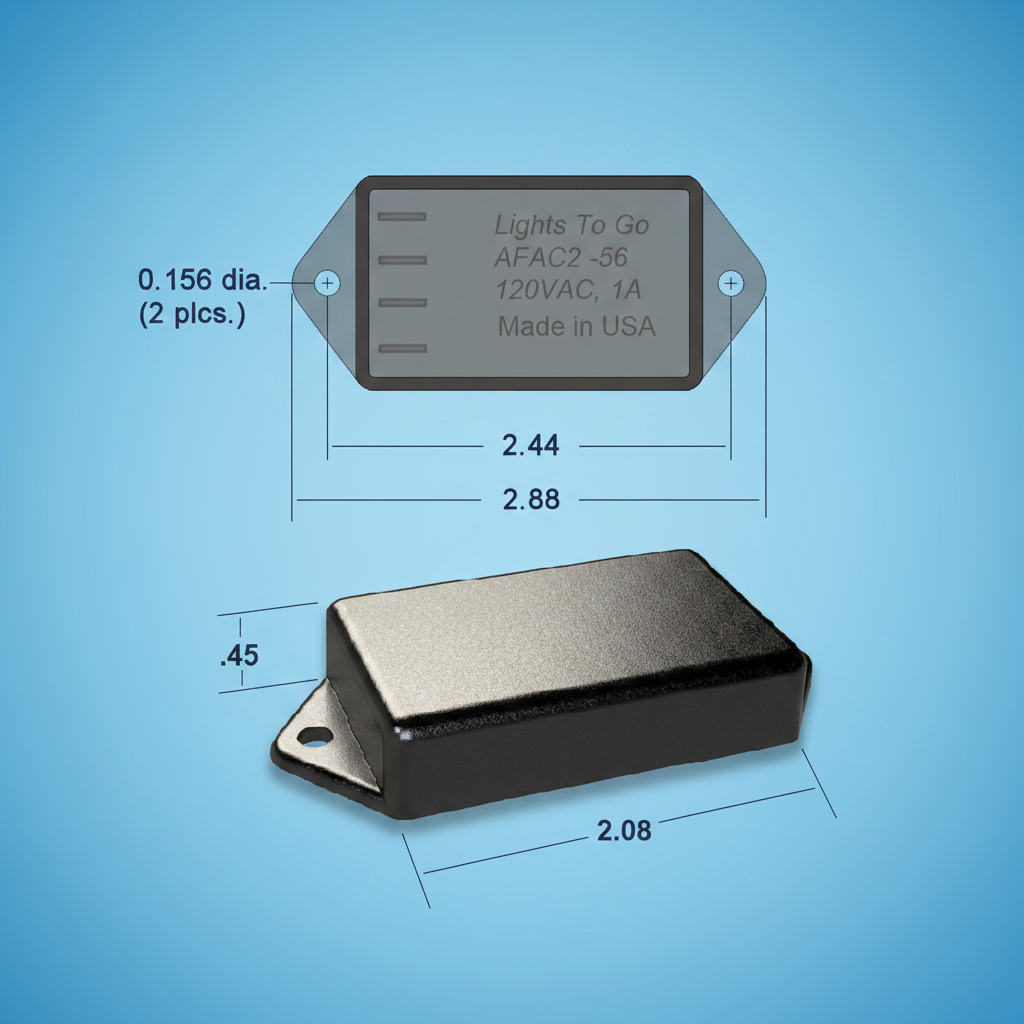

Mounting: Flange mount w/2 screws (#6/M4)
Replaces many discontinued products FS126, FS491, DFS154, 4210 and more
Enclosure: IP67:ABS, fully encapsulated
Mass: <30 grams

Cick Here For The AFAC2 Spec Sheet

OR

Click Here For The AFAC2 Wiring Diagram
