AFDC2-44 DC R/R Crossing Flasher

Description

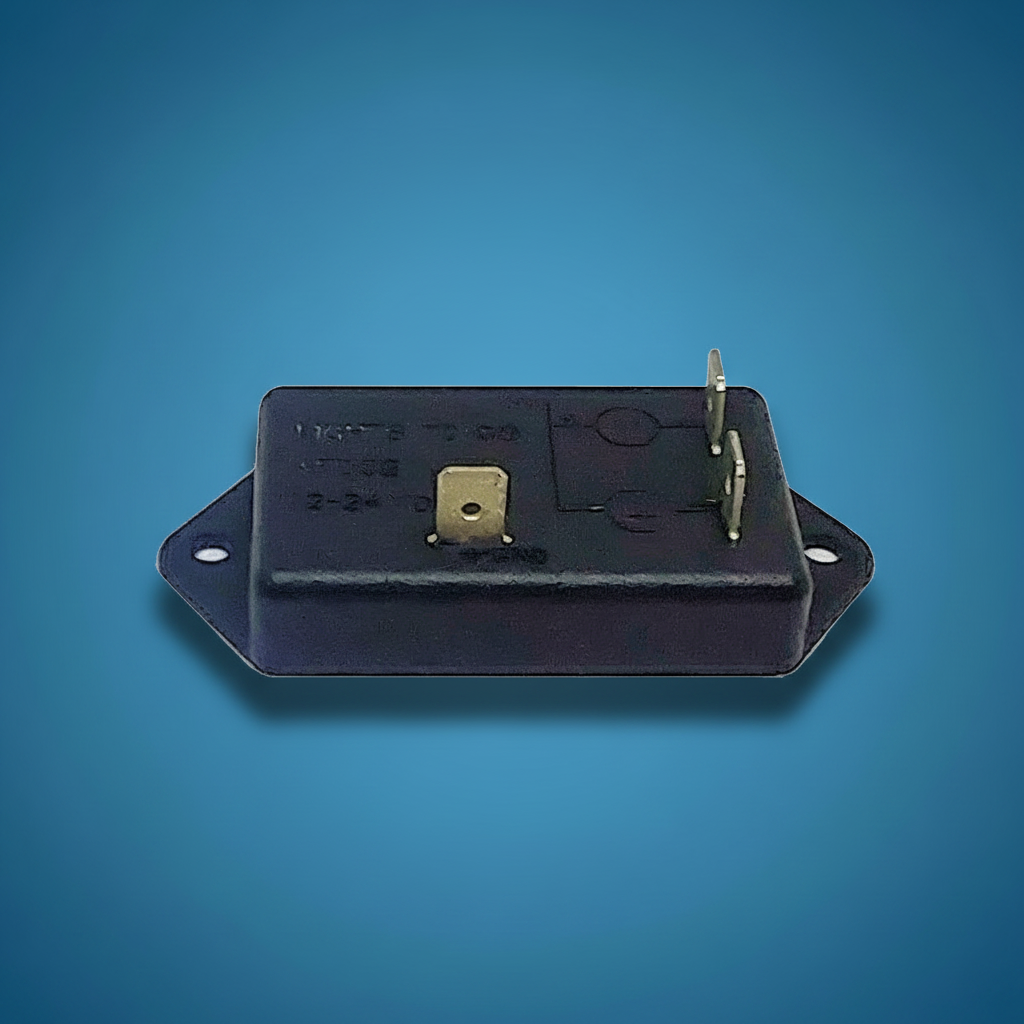

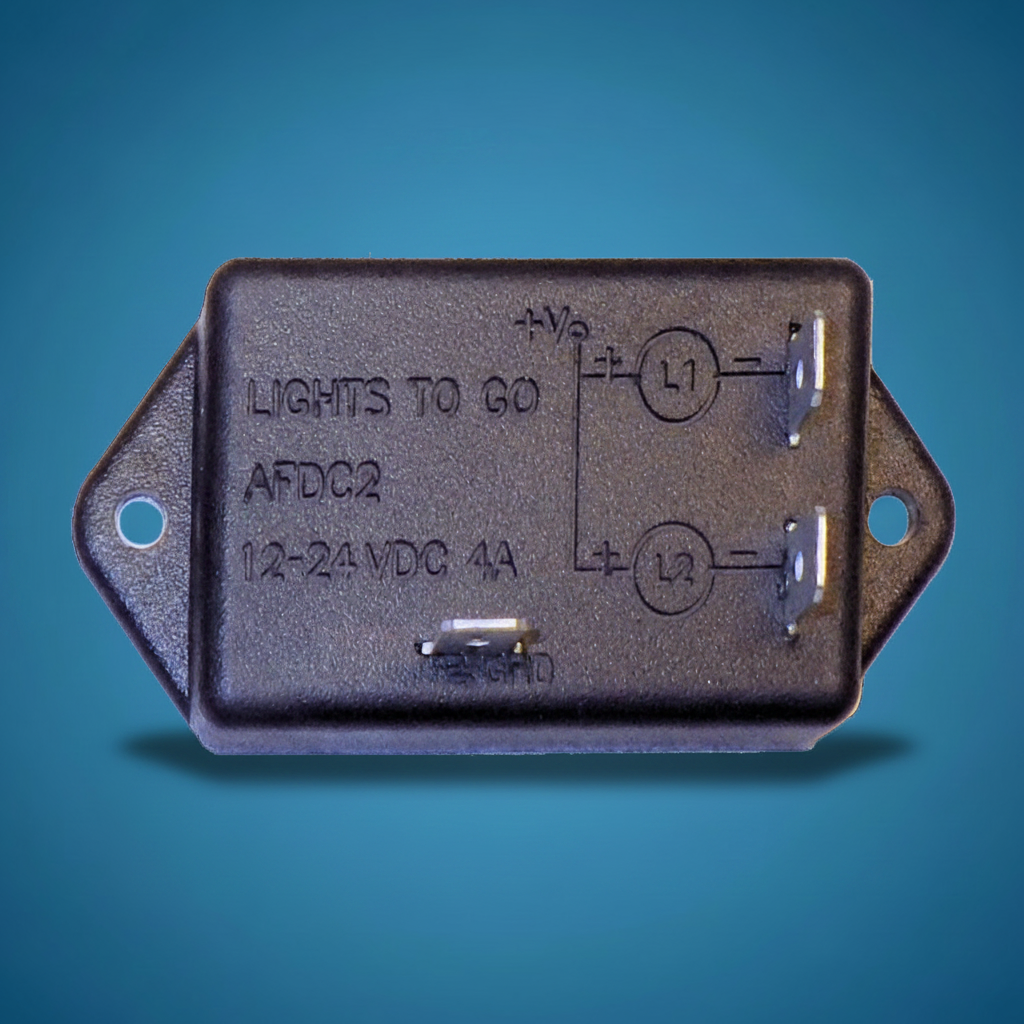

This encapsulated 2 channel flasher is designed to wig-wag flash your DC Rail Road signals.  The Model AFDC2 flasher operates on 10 to 24VDC systems and is able to drive loads of 4A per channel continuously. The flasher is entirely solid state, with no relays to click or stick. It is fully encapsulated for reliable long life. It is extremely compact and installs easily in a small space. It is high powered and will drive most common railroad crossing displays of 2 or 4 Lamps.

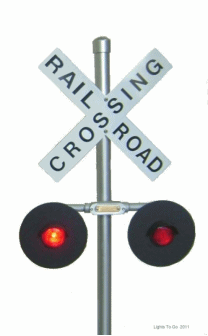

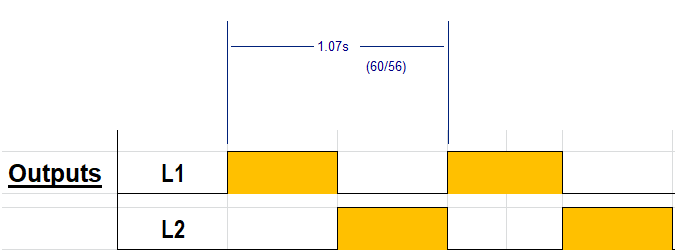

A wig-wag flash is a rail-road style flashing sequence.

• 44 Flashes Per Minute (std RR)
• 10-24VDC Power Operation
• Fully encapsulated for reliability
• Drives 2 or 4 lamp setups
• 4A max load capacity per channel
• 1 year warranty against mfg defects

This is another Lights To Go exclusive product, Made in America.

Click for the AFDC2-44 Specification Sheet

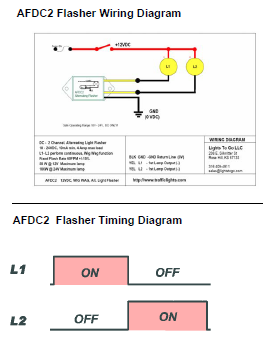

Click for the AFDC2-44 Wiring Diagram
