Traffic Light Controller - Model N3

Product ID : 9716677673260

Regular price $45.00
Regular price Sale price $45.00

Description

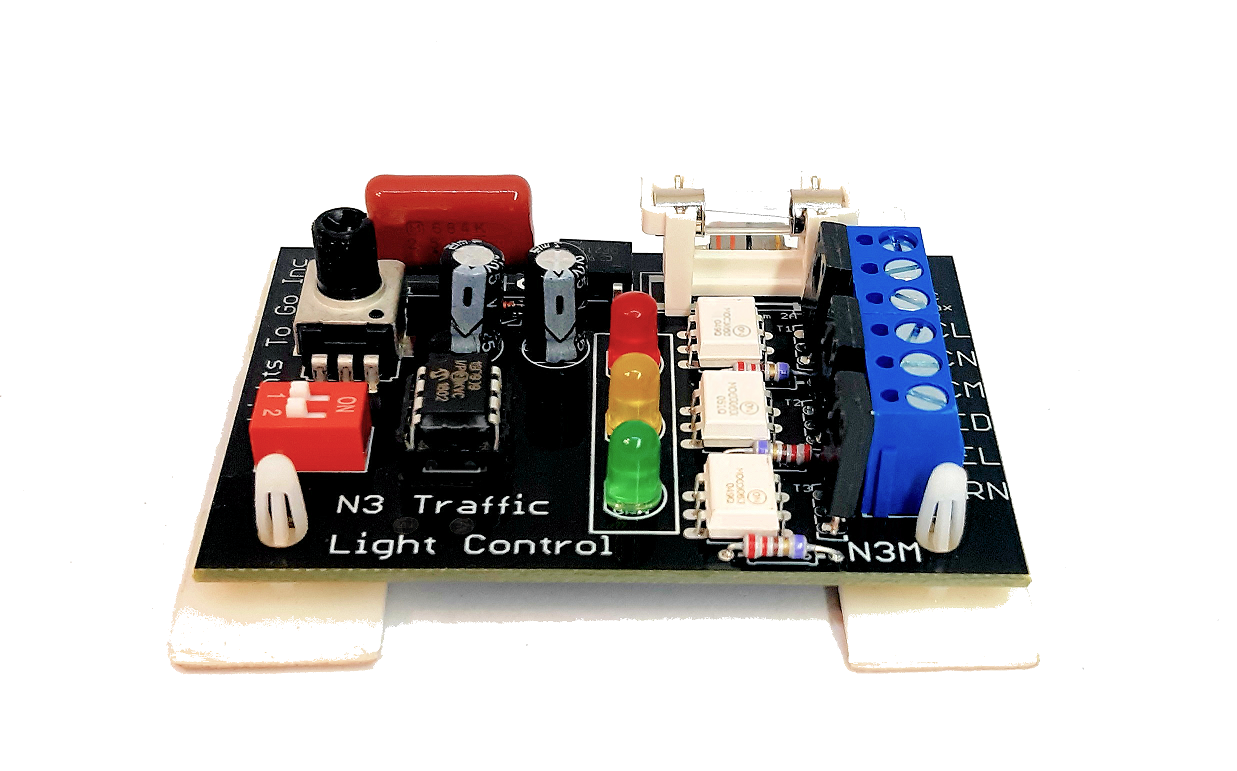

Traffic Light Control Sequencer. Model N3 - Made to convert your 3 Light, Red Yellow Green, traffic signal to stand alone operation.

  • Realistic traffic light cycle timing
  • Easily to adjust speed control
  • Made for standard US traffic signals 120VAC /60Hz
  • Built-in power indication Red, Yellow, Green LED's
  • Integrated on-board fuse holder
  • Alternating Red-Yellow Flash function
  • 150W output capacity per channel
  • PCB dimensions 2" x 3" x < 1in tall
  • Controlled power-up with lamp check
  • 6 position screw terminal strip for all electrical connections

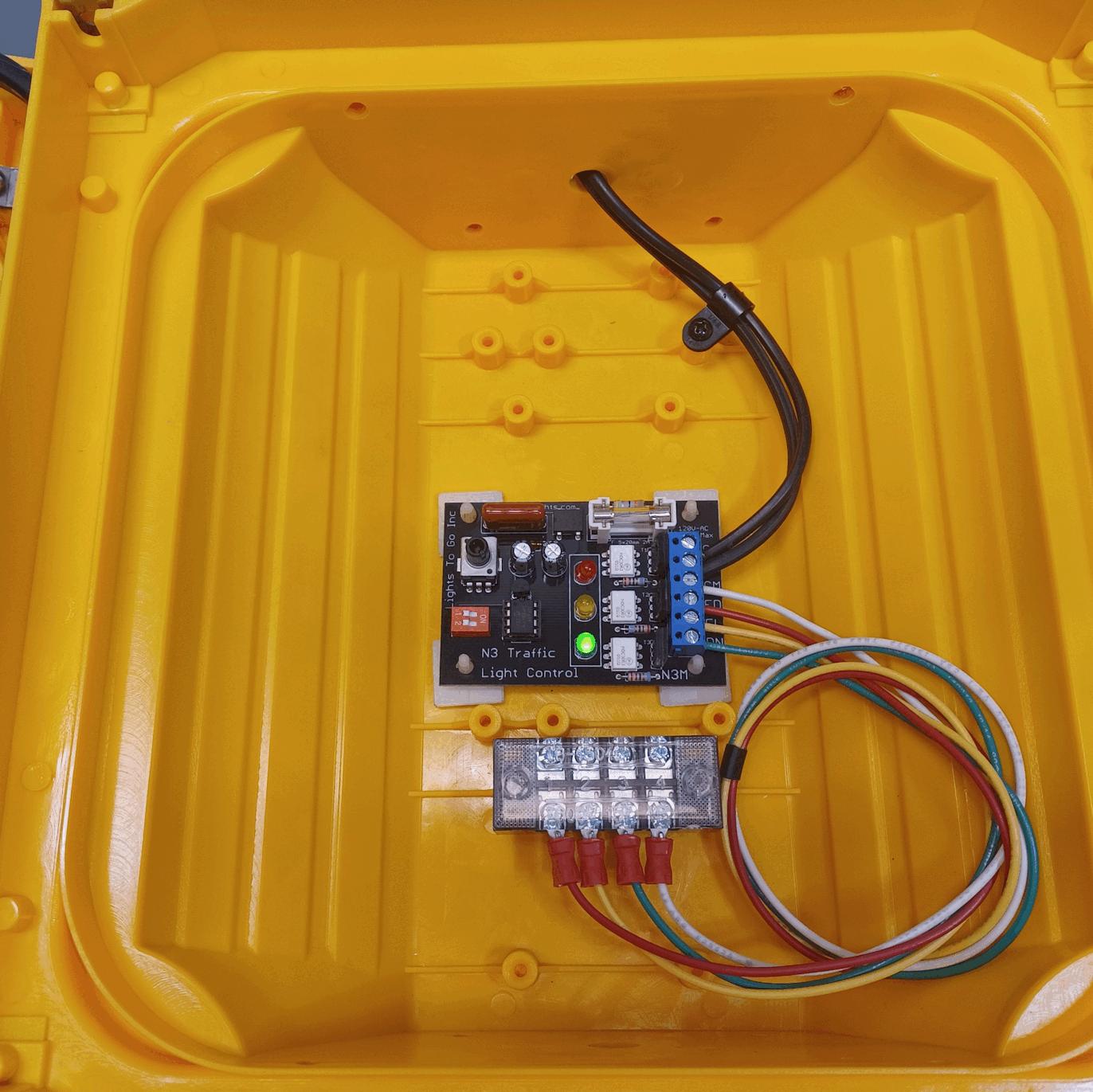

  • Mounting kit included, with wiring diagram and instructions
  • 3 year warranty from mfg defects



Also Available:

N3E Equal Time 3 Light Red Yellow Green Traffic Control Sequencer.

  • Equal Time Red-Yellow-Green
  • 120VAC
  • Built-in power indication Red, Yellow, Green LED's
  • Integrated on-board fuse holder
  • High reliability Speed Control
  • 150 W output capacity
  • Control board 2" x 3"
  • Controlled power-up with lamp check
  • 6 position screw terminal strip for all electrical connections
  • Mounting kit included, with wiring diagram and instructions
  • 3 year warranty from mfg defects

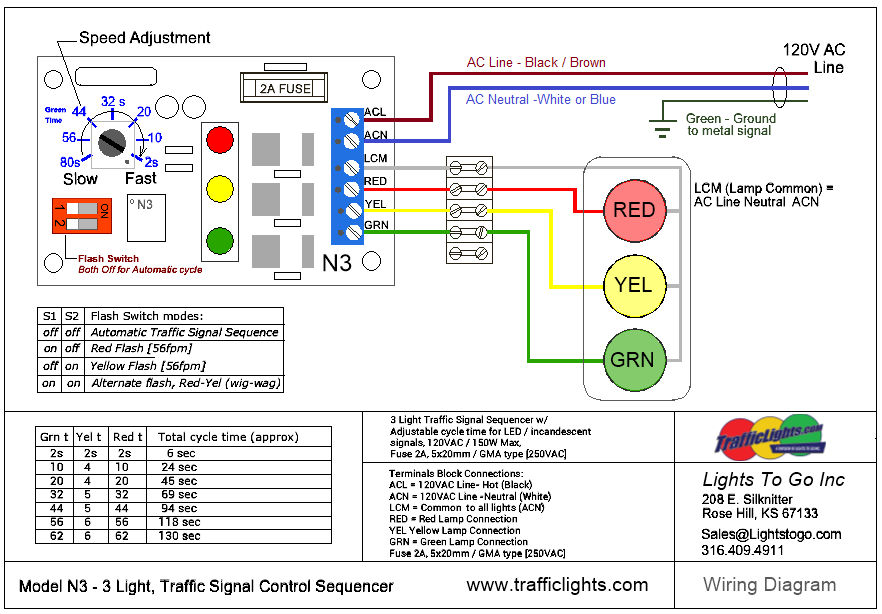

Click here to download the N3 wiring diagram

Choose USPS at checkout for the quickest, most economical shipping.

Shipping calculated at checkout.
