Remote Control Traffic Signal System — RCN3

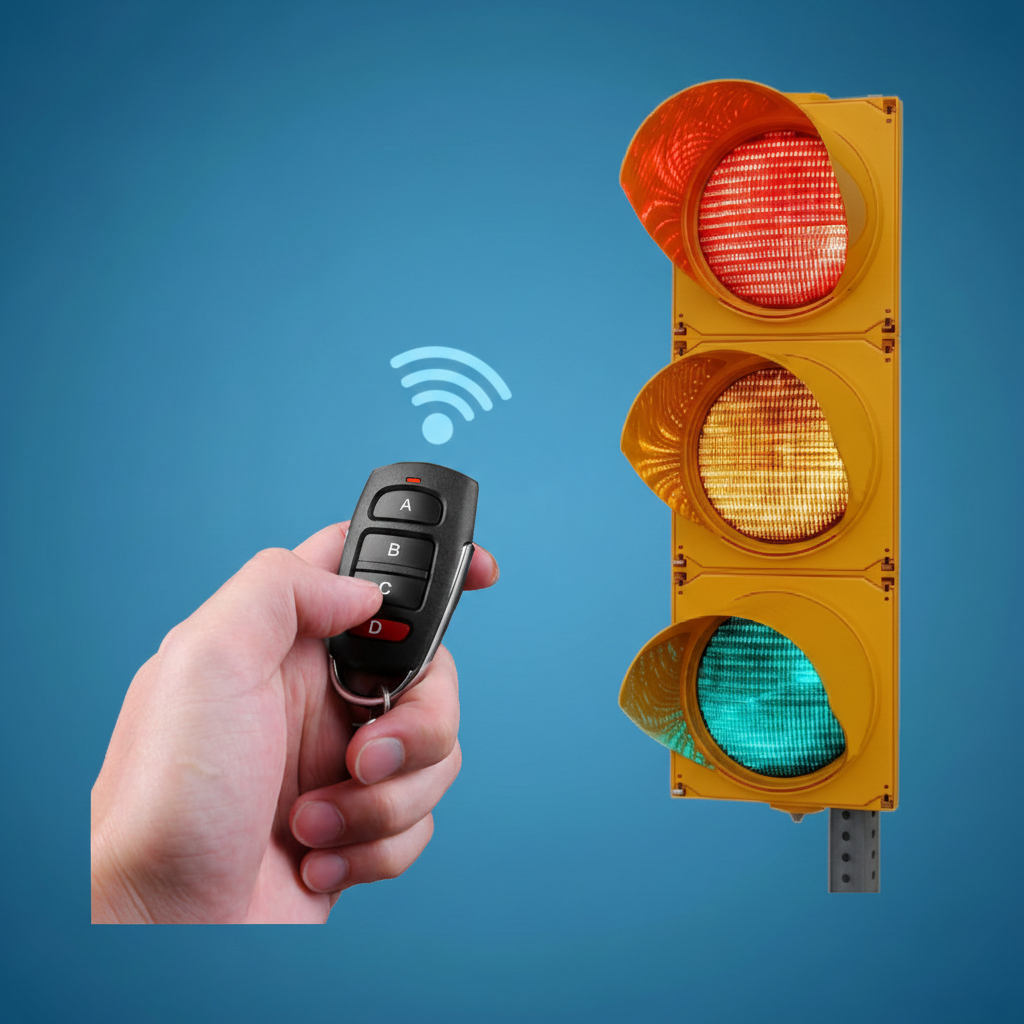

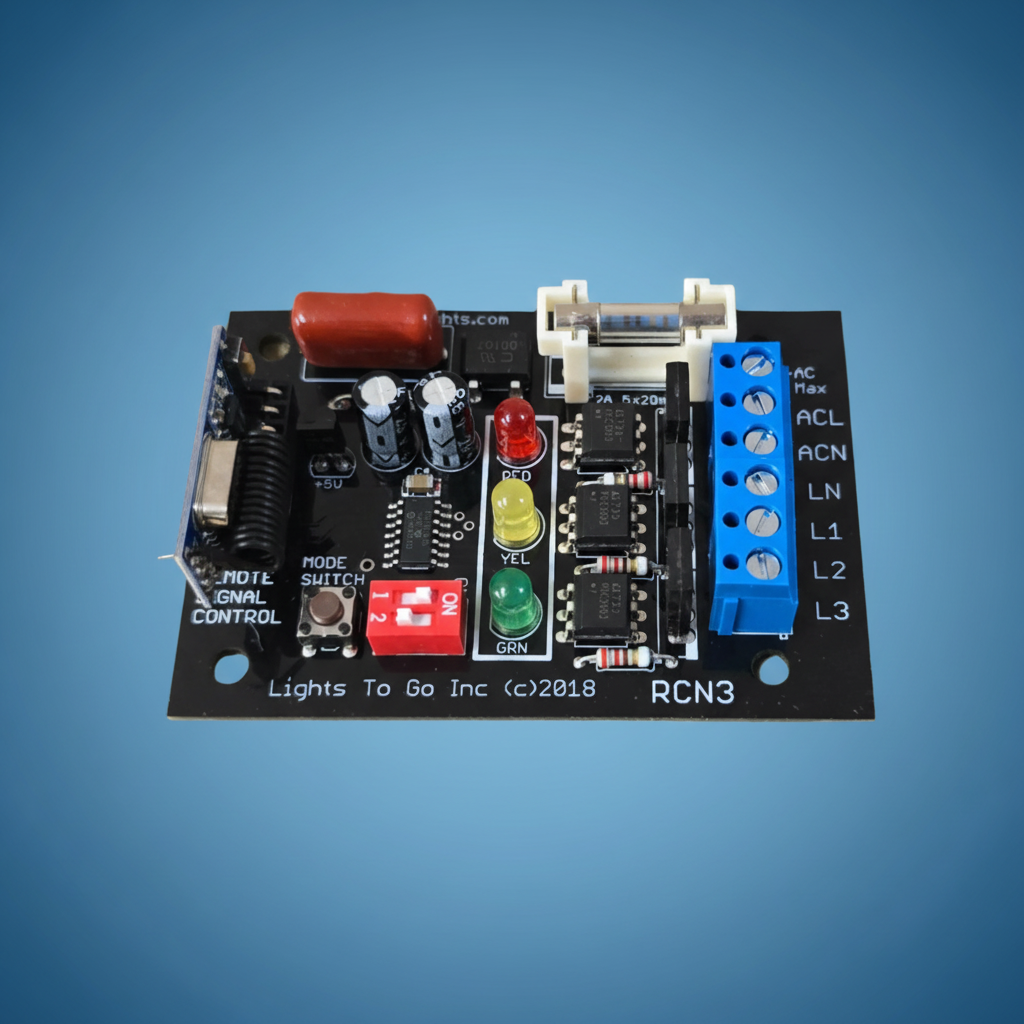

This control board converts your traffic light display to remote control operation. Easy to install inside any standard AC traffic signal, it offers direct control of any light color as well as flashing modes — perfect for safety status indicators and industrial signaling.

Features Include:

• Operates directly from 120VAC/60Hz (±20%)
• 150W max lamp (incandescent or LED)
• >100 ft operating range under line-of-sight conditions
• Compact 2" x 3" footprint fits any signal housing
• 2-year limited manufacturer warranty

Kit Includes:

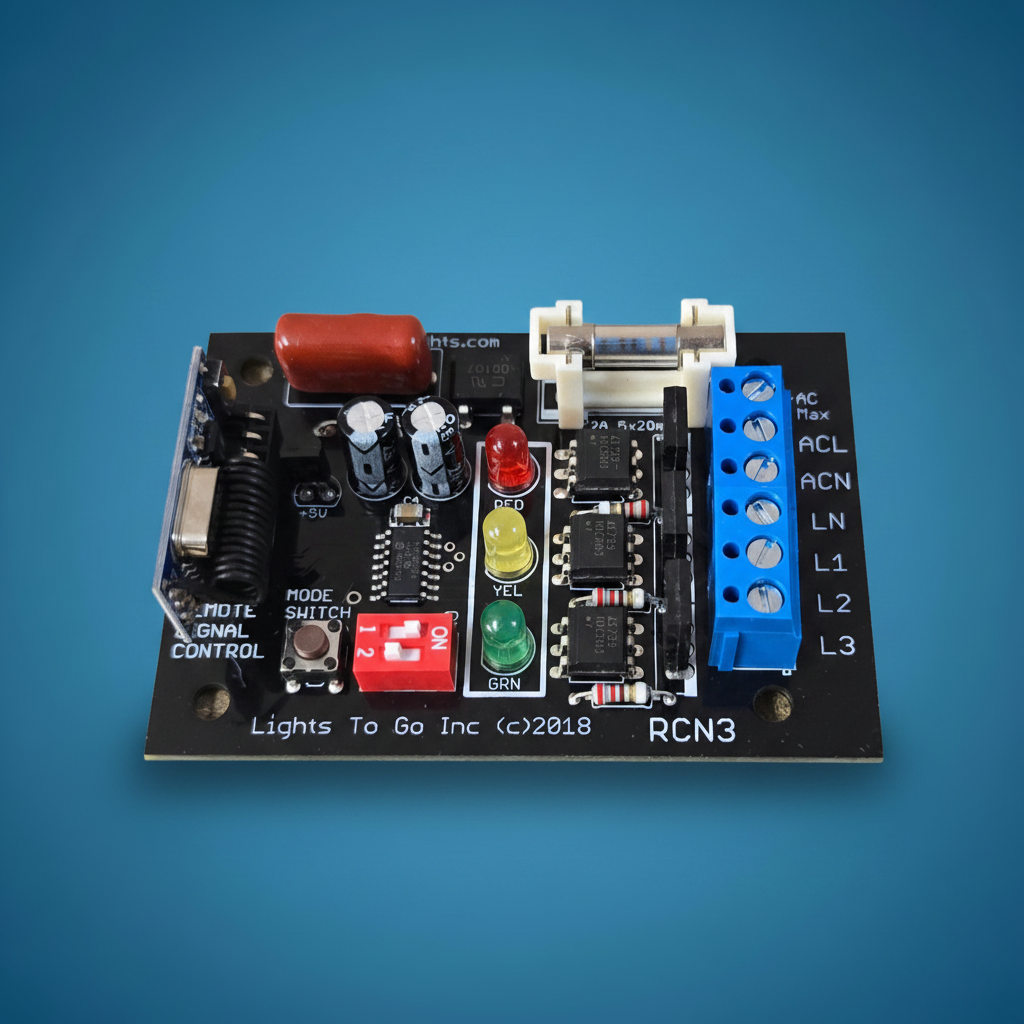

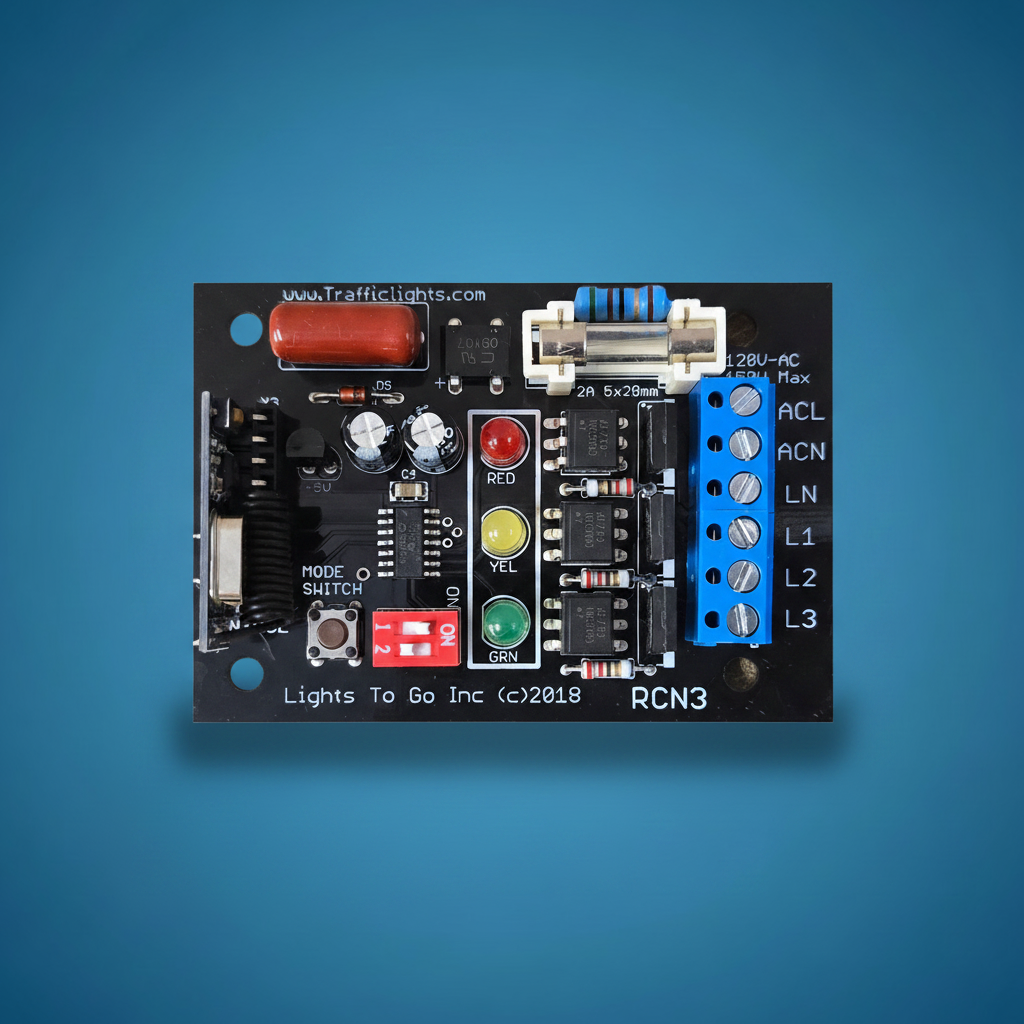

• Qty 1: RCN3 control board with antenna receiver

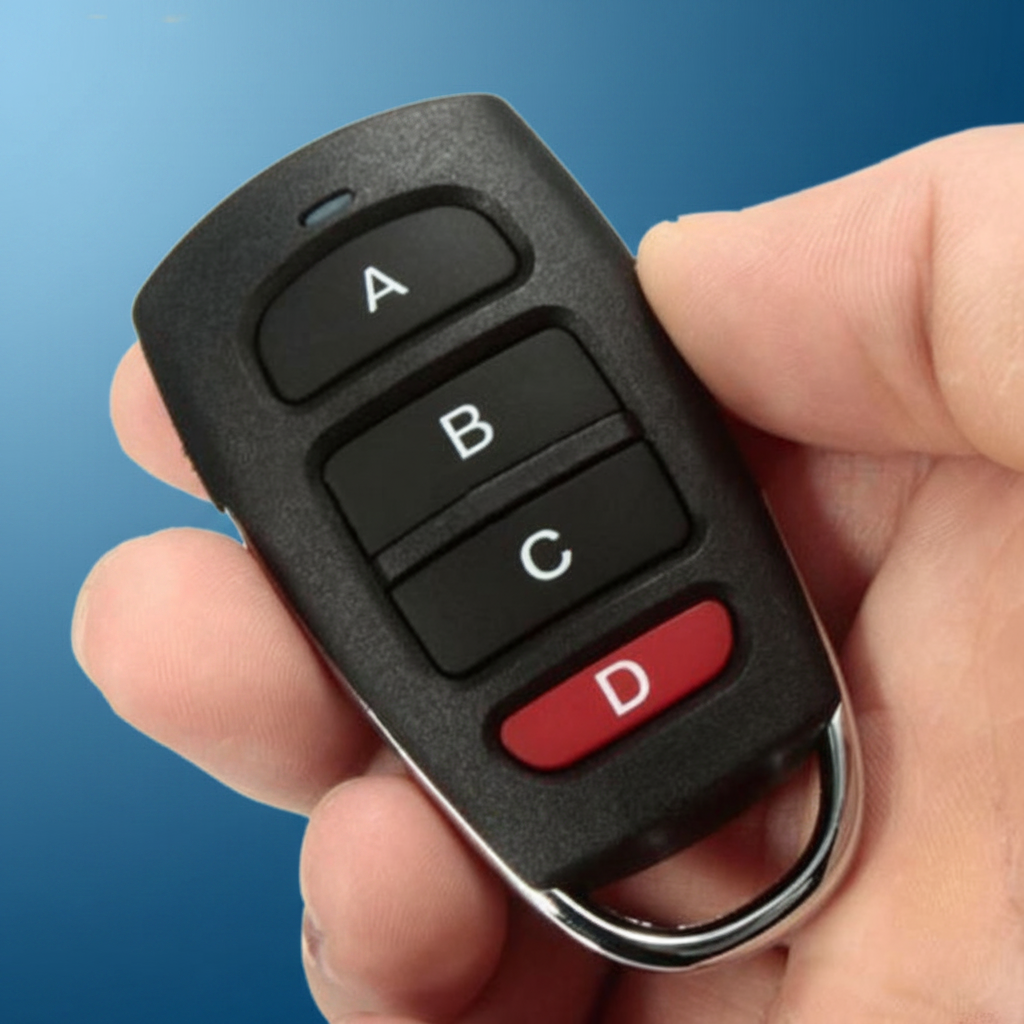

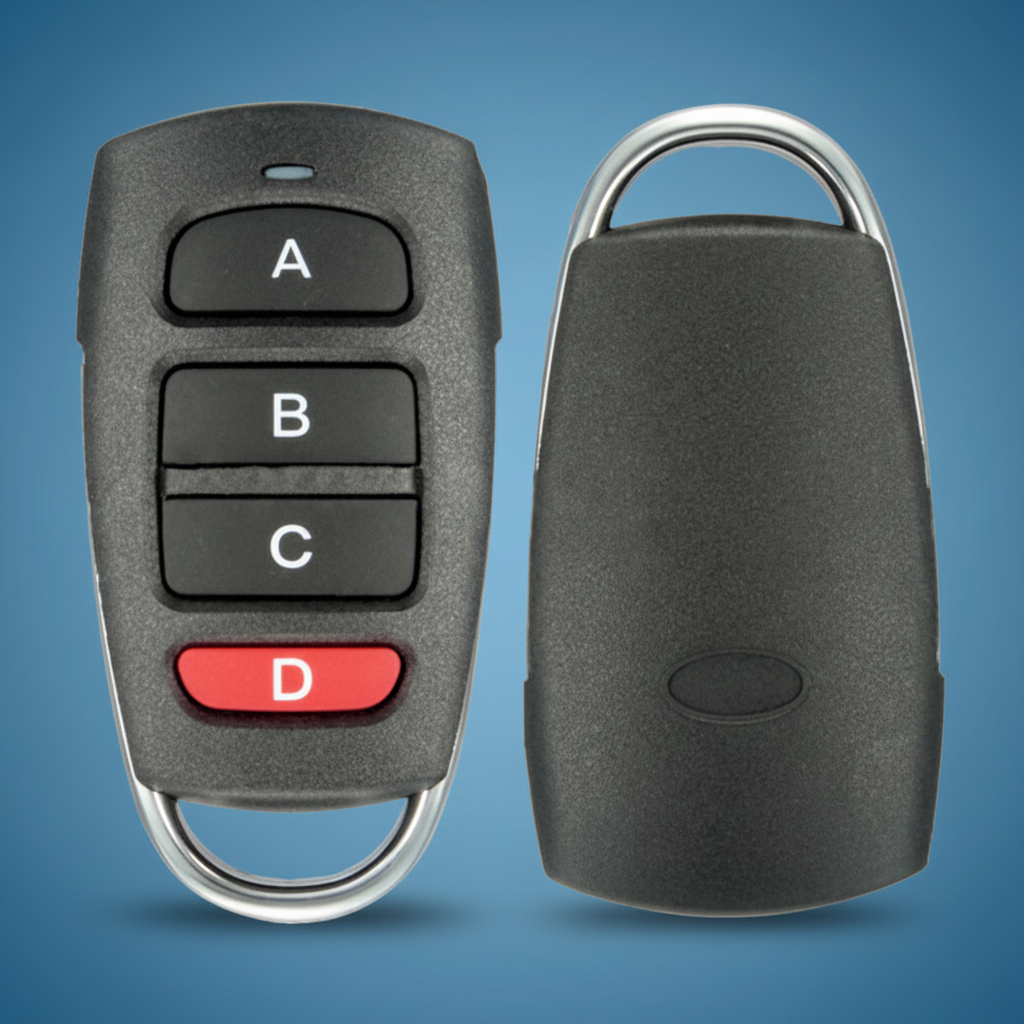

• Qty 2: Four-button remote (ABCD key fob style)
• Qty 4: Adhesive sticky feet for mounting the circuit board

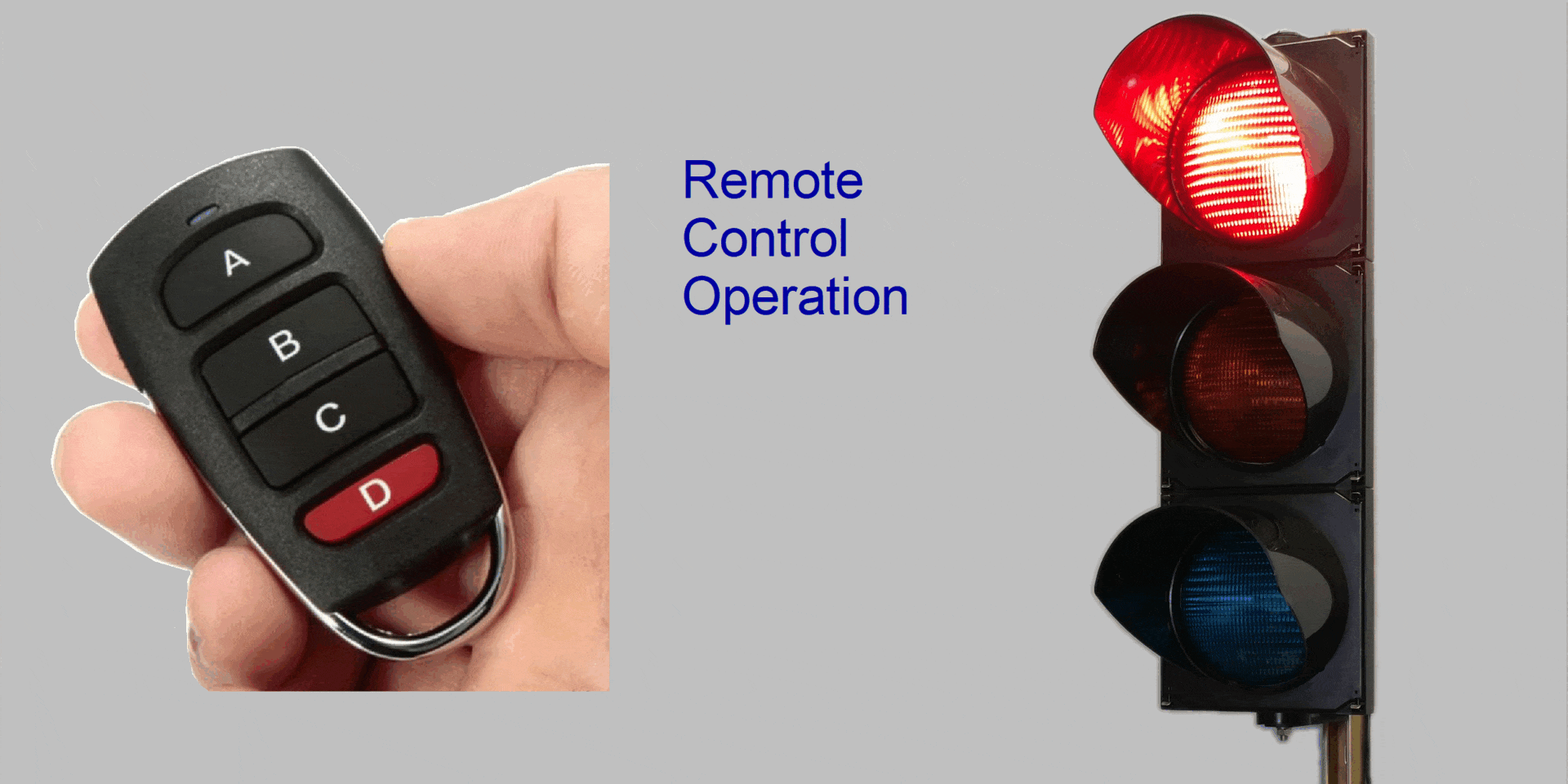

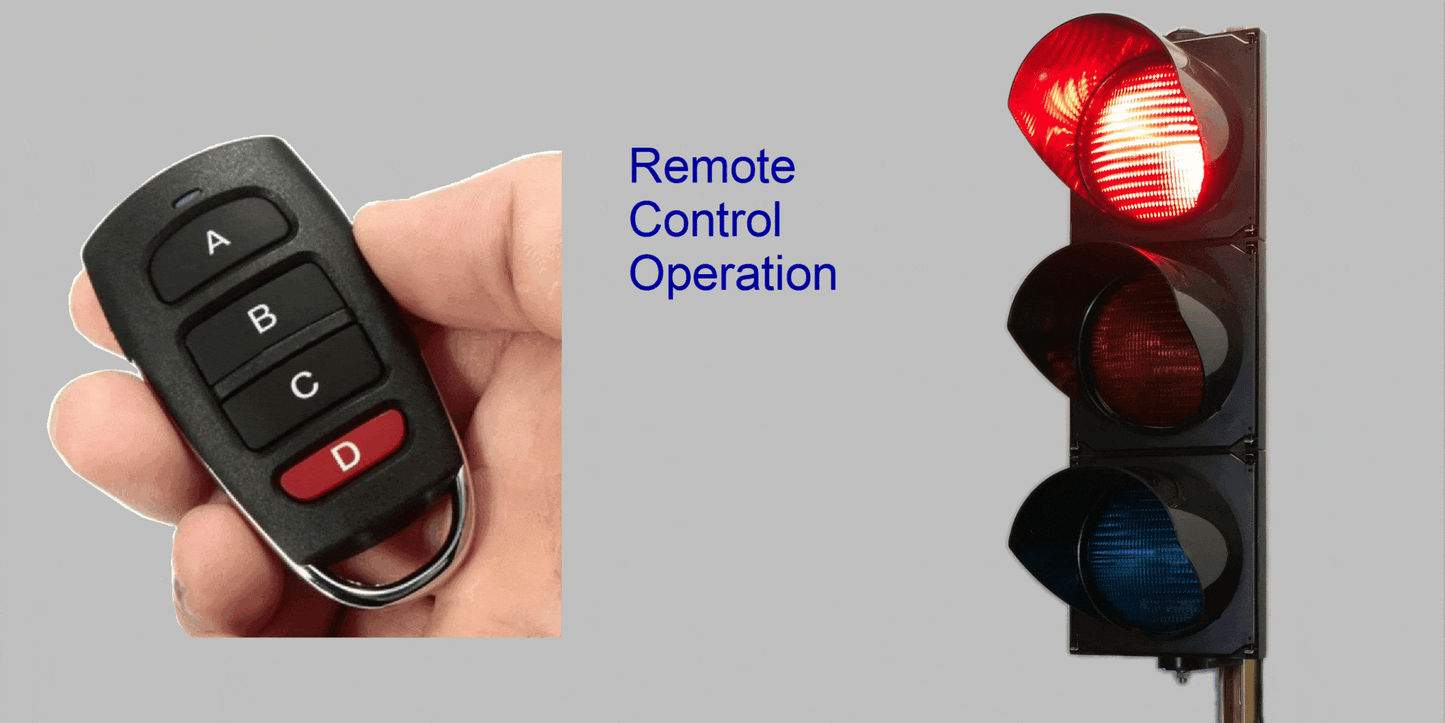

4 Operation Modes:

1. Standard Manual Mode — (A) Red, (B) Yellow, (C) Green buttons select individual lights. Press again to toggle flashing. (D) Advance steps through all colors.
2. Automatic Cycle — Fast — (D) button starts the auto cycle loop from flashing mode.
3. Automatic Cycle — Slow — Same as above with a slower cycle.
4. Multi-Light Mode — Lights toggle on/off with each button press. (D) toggles flashing for any lights currently on.

RCN3 Instruction Sheet (PDF)

RCN3 Wiring Diagram (PDF)

Replacement Key-Fob Remote
