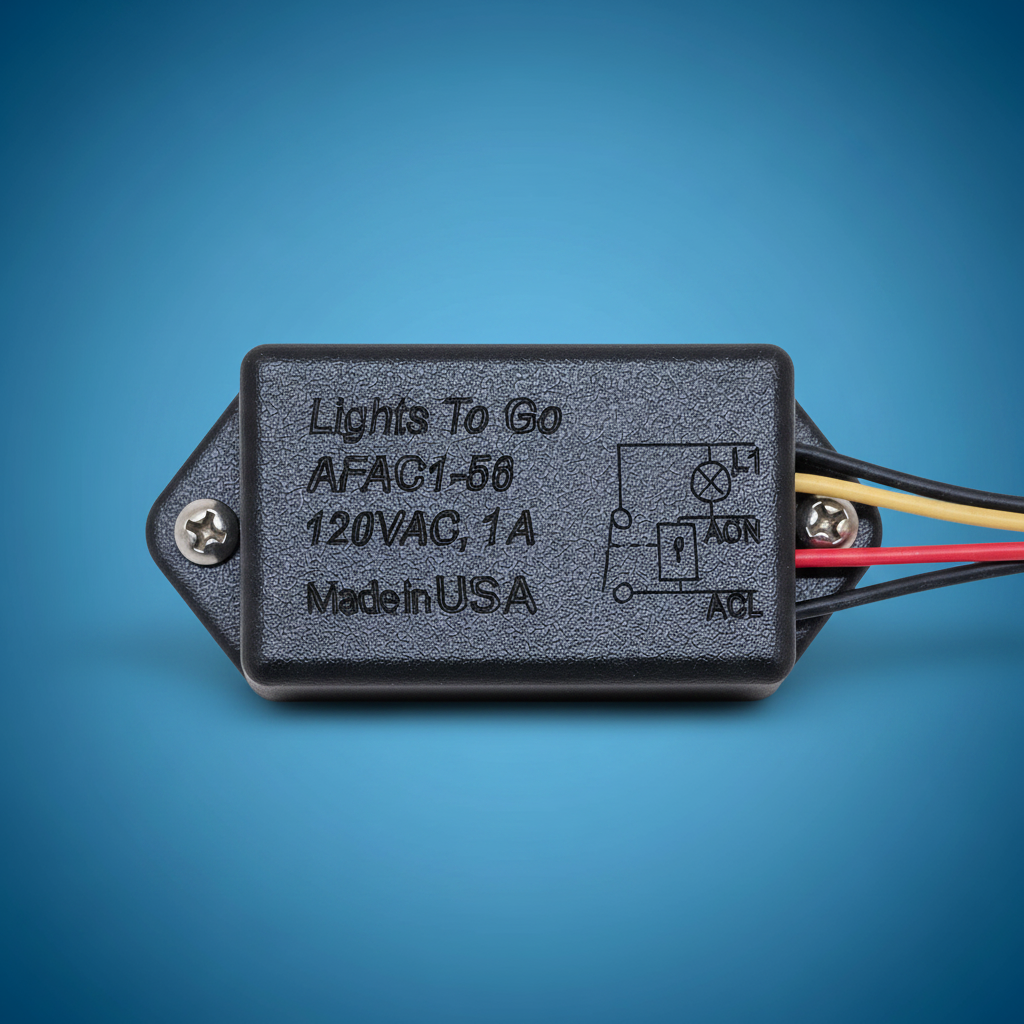

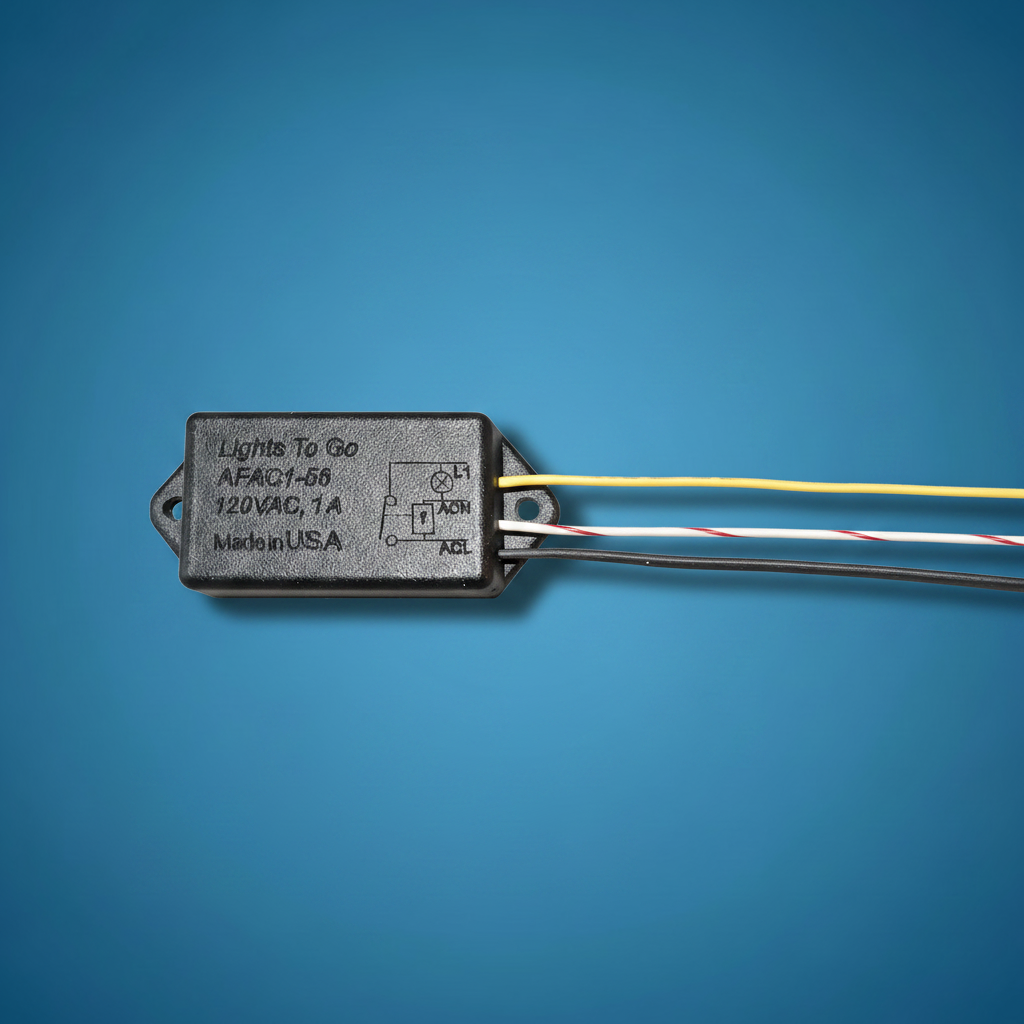

AFAC1 - AC Single Channel Flasher

Description

AFAC1 Flasher Features:

• 120VAC LED Signal Flasher
• Compact, easy to mount package
• Fully encapsulated for high reliability
• Zero cross switching
• Very low power consumption
• Totally silent, sealed & solid state

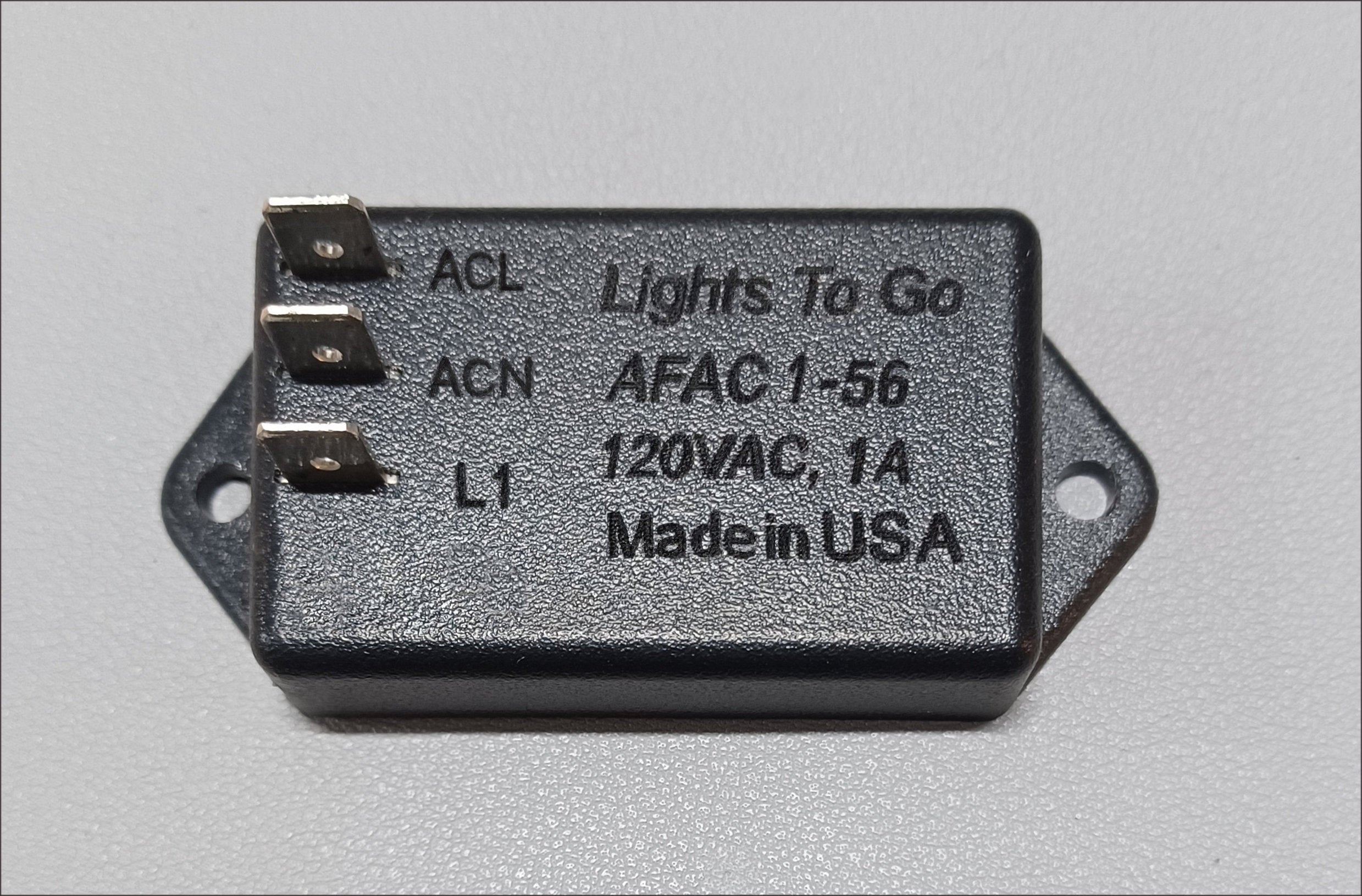

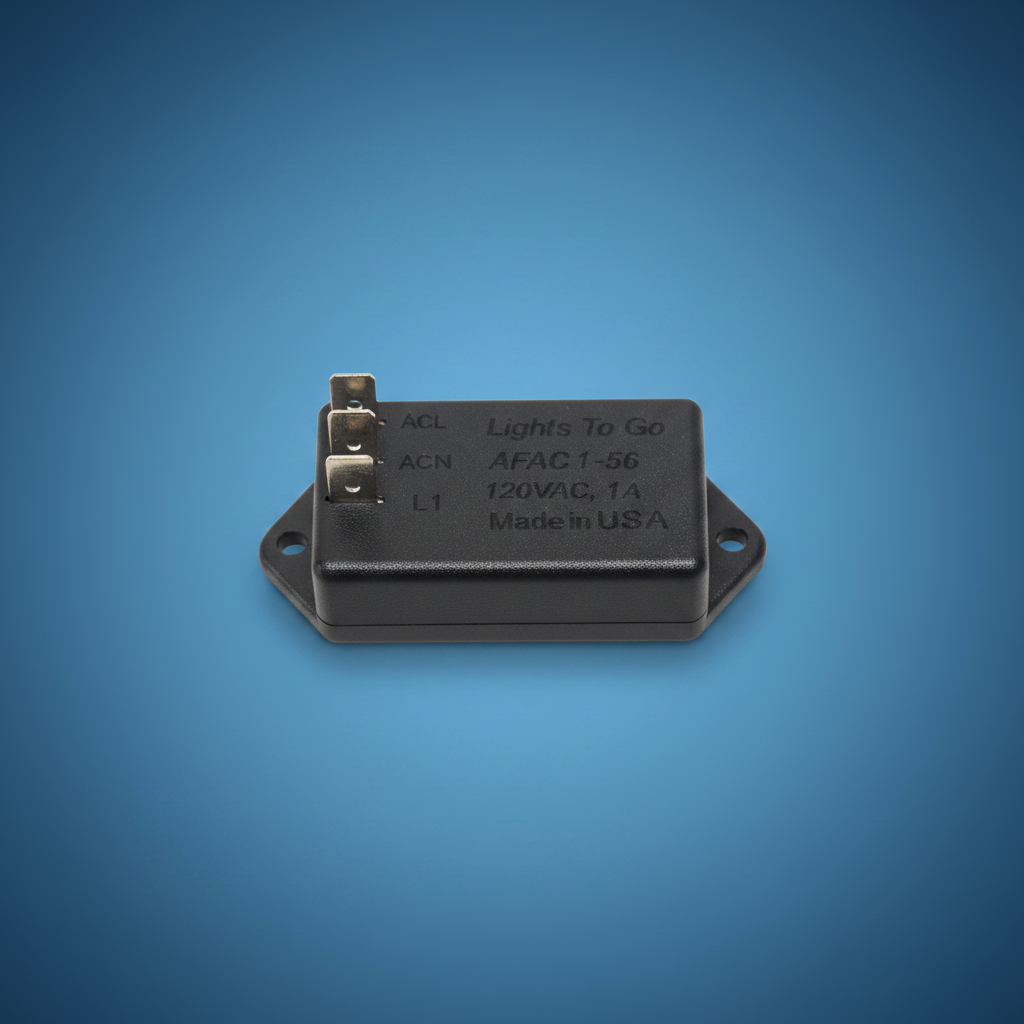

• Easy wiring w/lead wires -- .250 quick connect, brass tabs version available upon request
• High surge current capability. Built to flash up to 4 LED signal modules
• Long lifetime - Made in USA

     AFAC1 Flasher Specifications:

Timing Action: Fixed flash rate, 50% Duty Cycle
Flash Rate: 56 FPM (nominal) +/-3 (std.)
Power: 120VAC, 50/60hz,<200mW
Output Rating: 1A  Maximum AC Load 10A  Peak in rush rating
Output Type: Line synchronous, zero voltage crossing – Triac switch

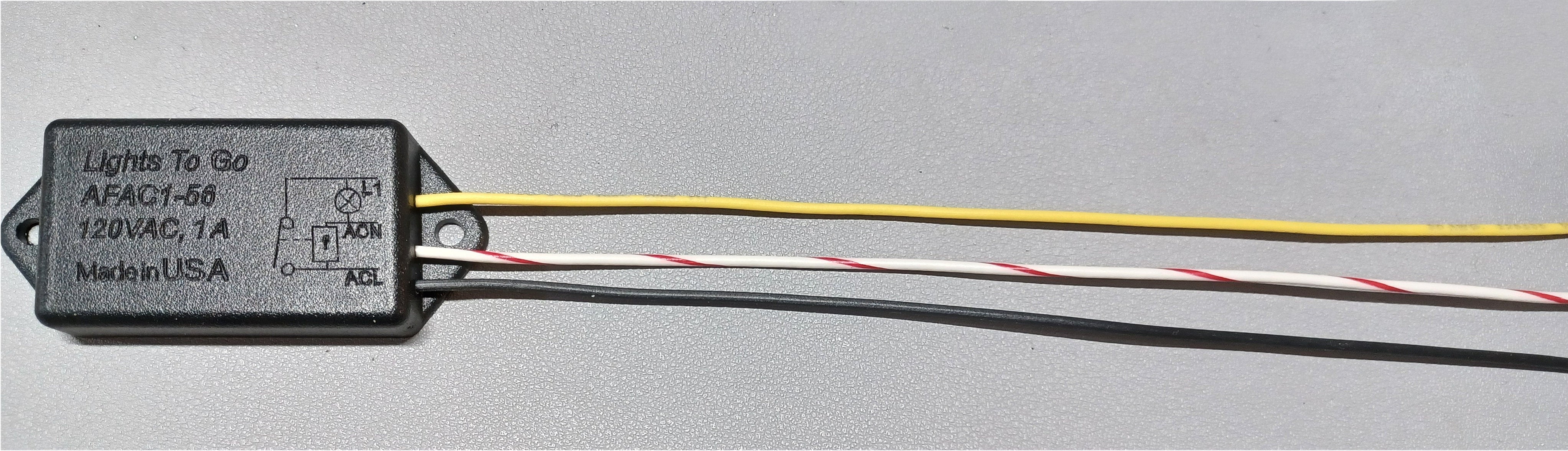

Connection Terminals: 6 inch (15cm) wire leads -- .250 quick connect, brass tabs version available upon request
Temp. Rating: -30C to+70ºC (-20 to 160º.F)

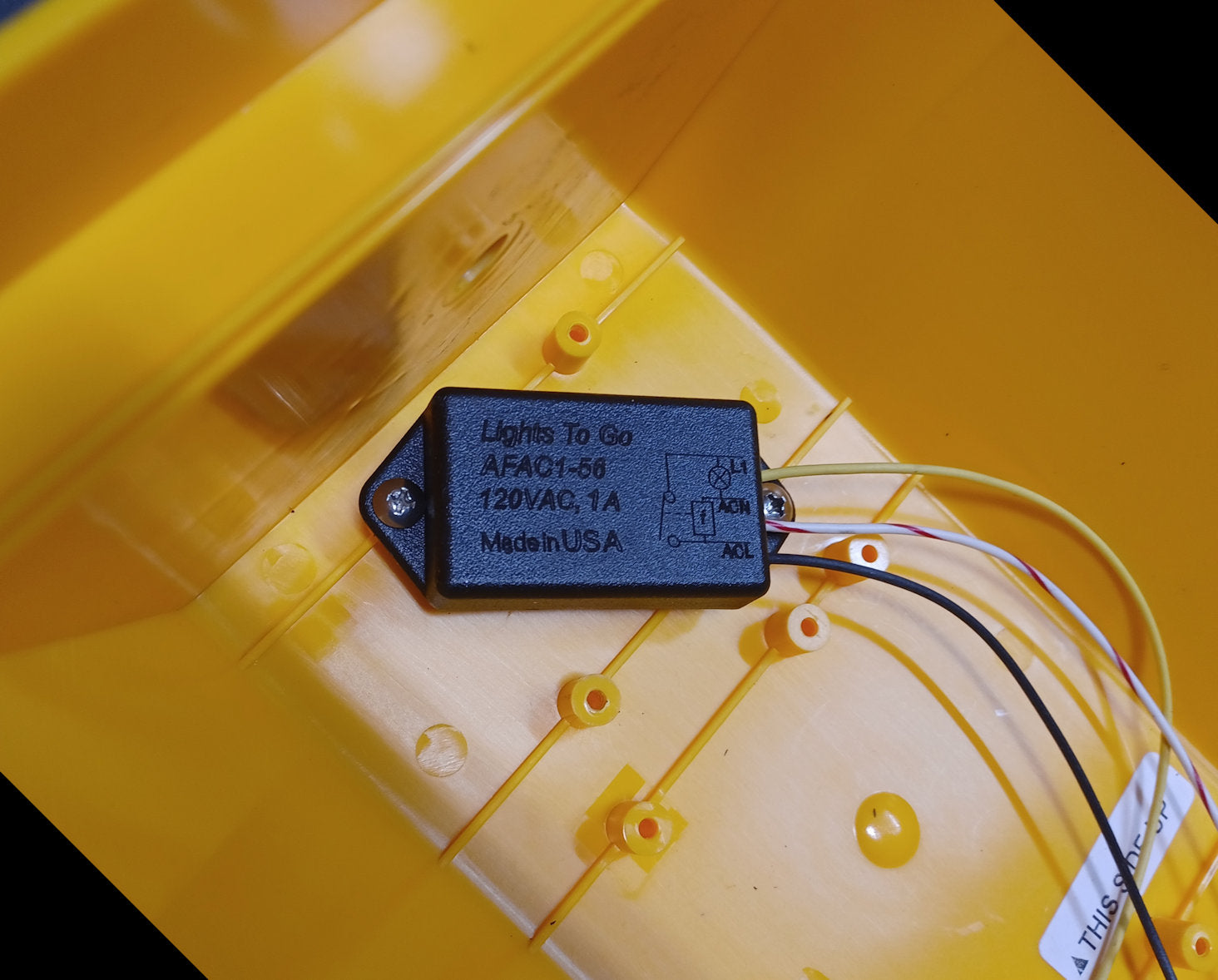

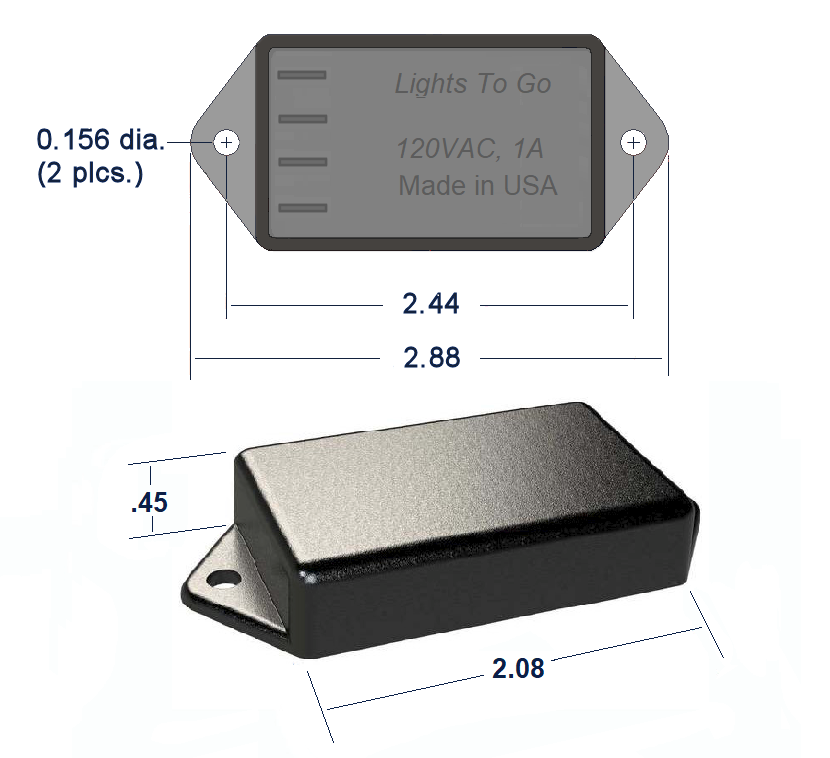

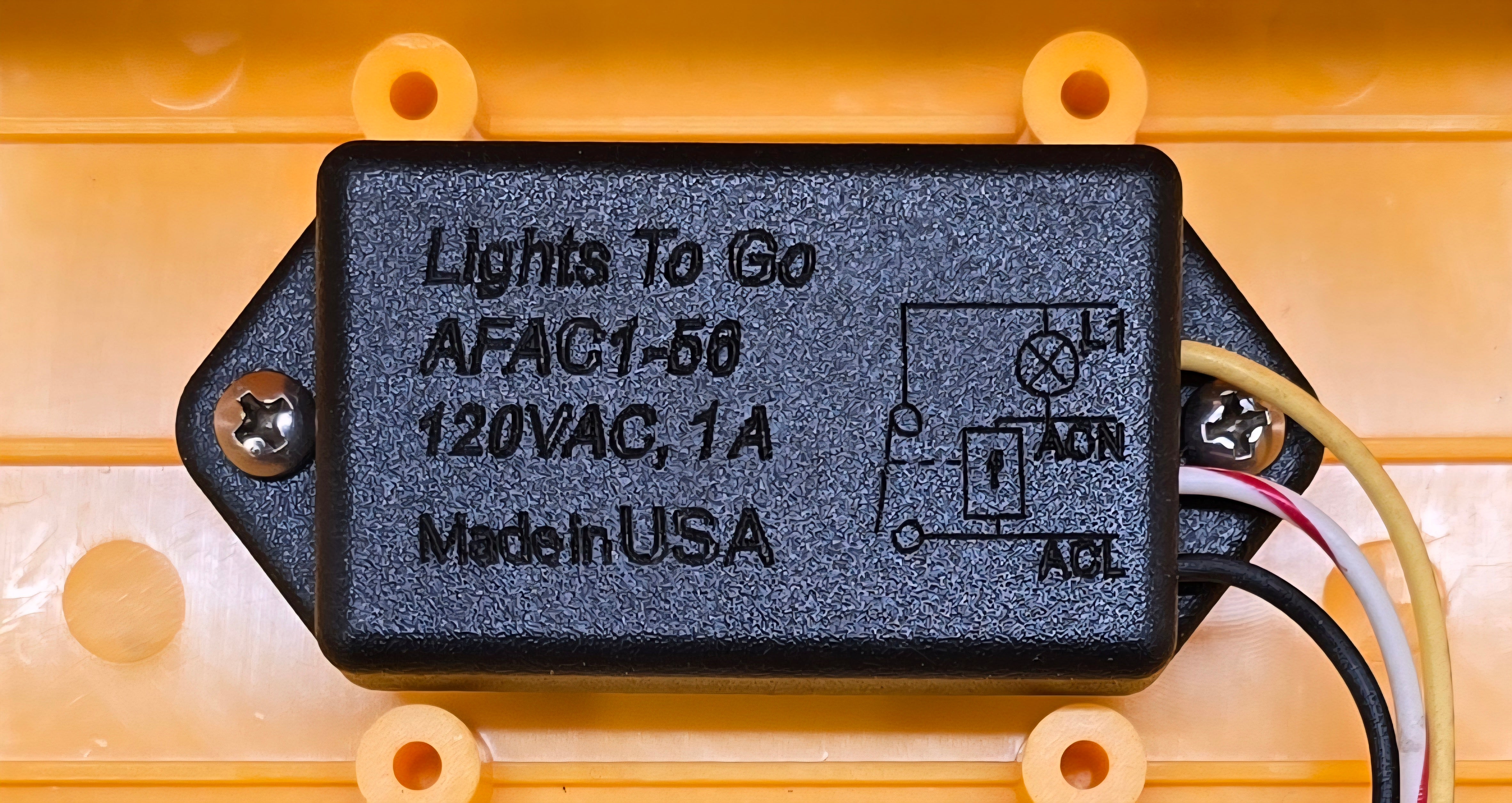

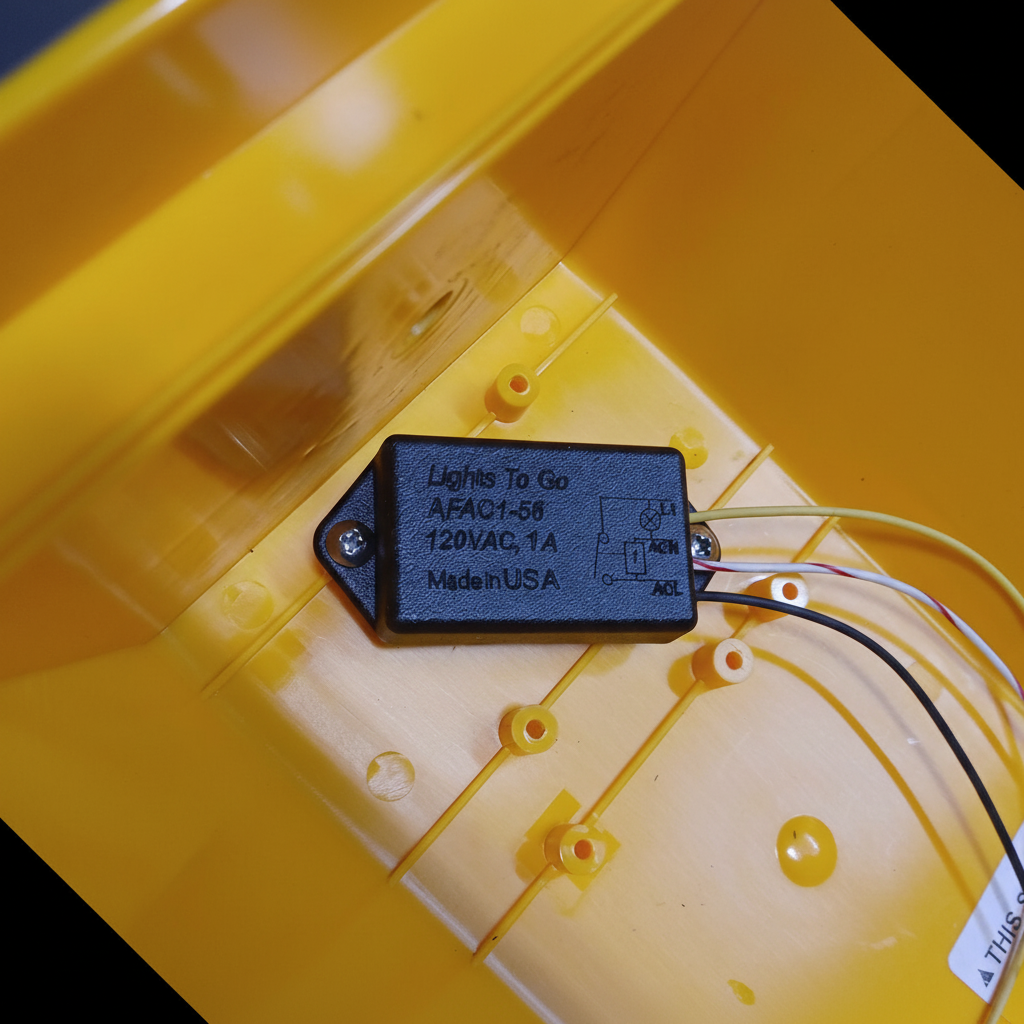

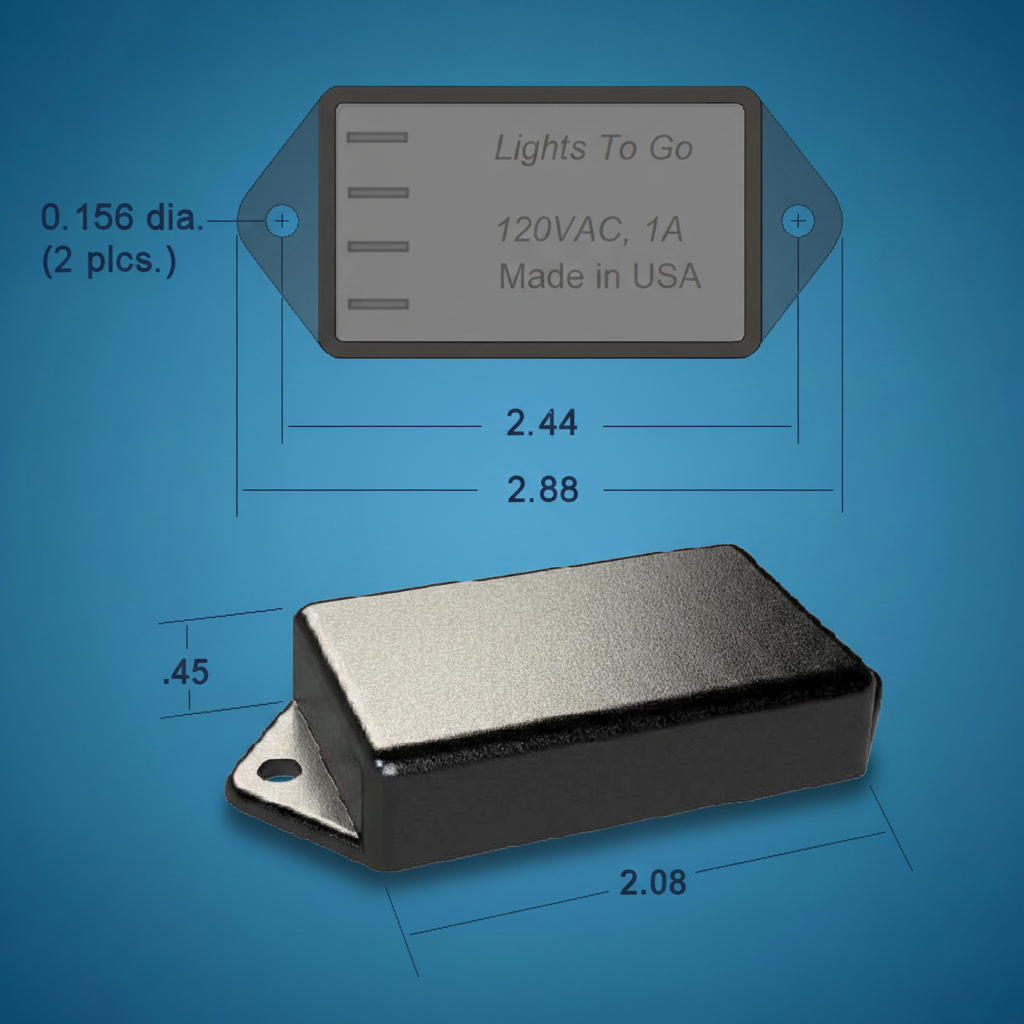

Mounting: Flange mount w/2 screws (#6/M4)
Enclosure: IP67:ABS, fully encapsulated
Mass: <30 grams

Click Here For The AFAC1 Spec Sheet

OR

Click Here For The AFAC1 Wiring Diagram
