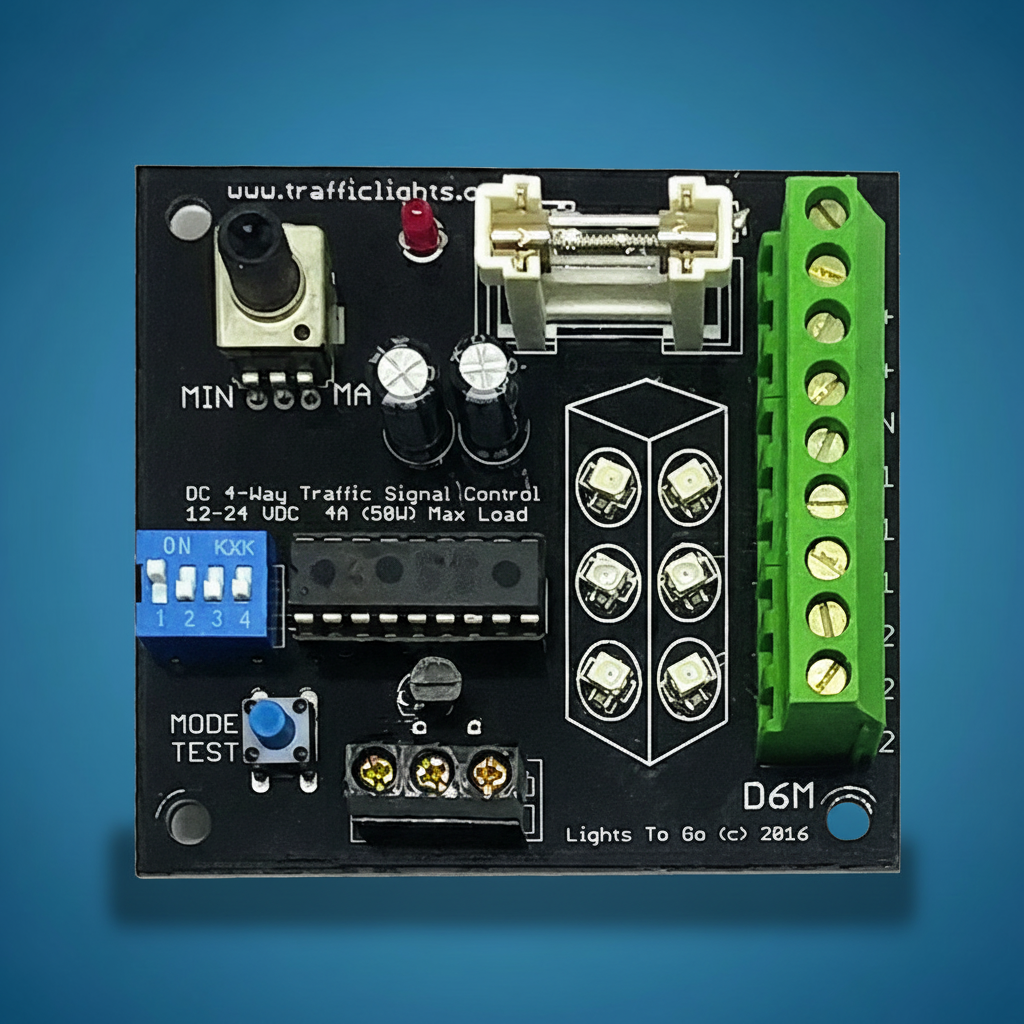

DC 4 Direction Traffic Controller-D6M

D6M — 4-Way DC Signal Controller

DC 4 Direction Traffic Signal Intersection Controller

The D6M is designed to be the simplest time-based 4-way logic controller available for a DC traffic signal intersection. Perfect for traffic modeling, demonstration use, and DC Safety City installations. Low power consumption and all-DC operation make it ideal for battery-powered and solar applications.

With a compact 3" x 3" footprint and included adhesive feet, the D6M fits easily into a signal housing or control box.

Features Include:

• 10–24VDC operation
• 6 solid state MOSFET outputs
• Each output rated 4A continuous max
• LED output monitors for each channel
• Compact 3" x 3" (75 x 75mm) open PCB
• Built-in light chaser sequences for LED displays and moving signs

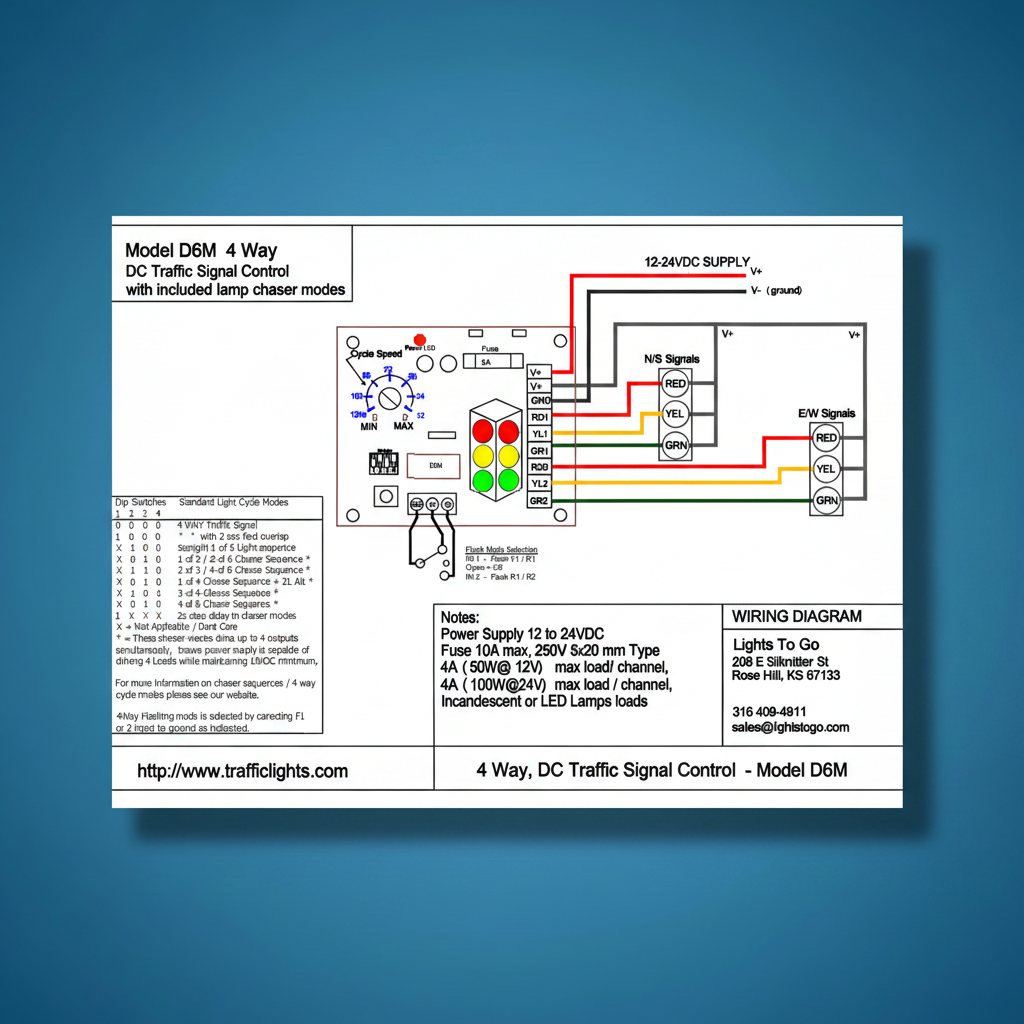

Download D6M Wiring Diagram (PDF)

Download D6M Detailed Spec Sheet (PDF)

Products on the shelf subject to prior sale.

Call us for pricing and availability: 316.409.4911

This product is covered by our 1 Year Defect Free Warranty.
