N5W — AC 5 Light Traffic Signal Controller w/Walk/Don't Walk

Description

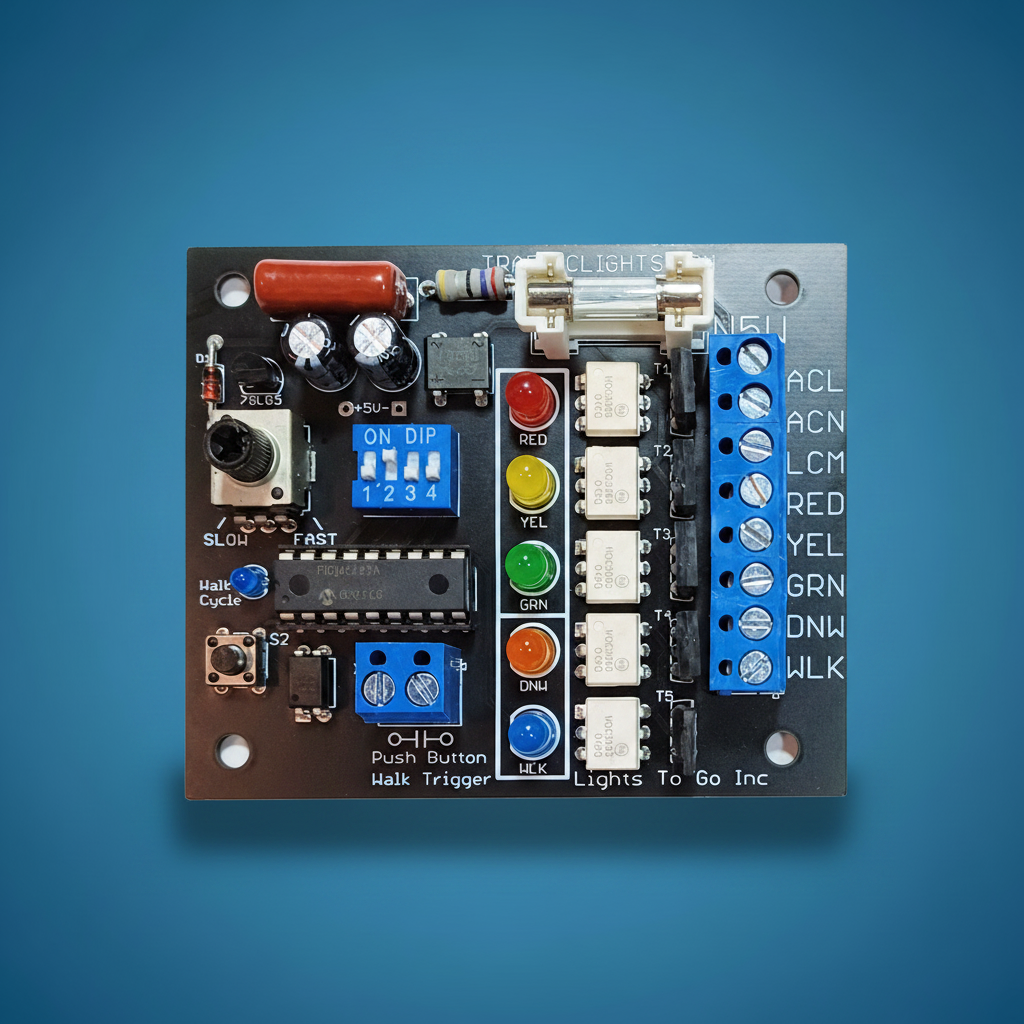

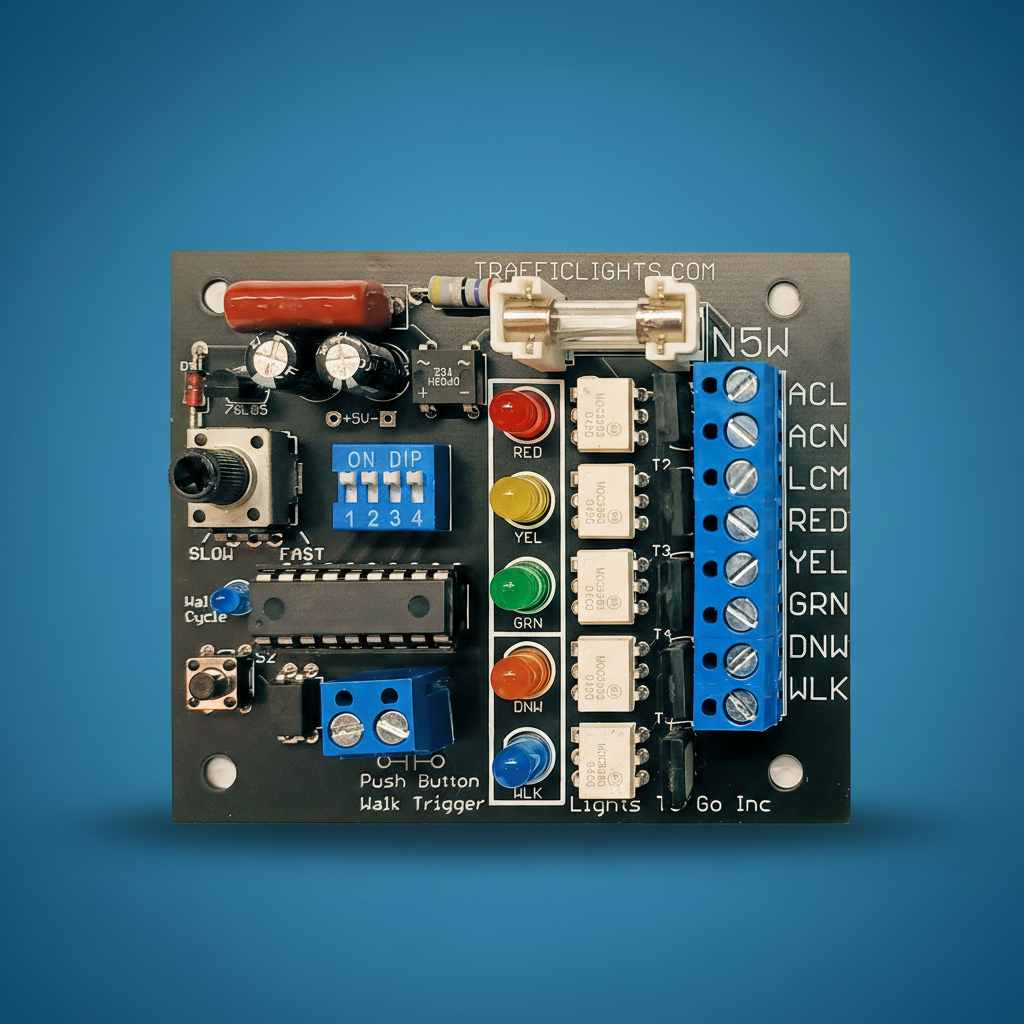

N5W — 5 Light AC Traffic Signal Controller

With Walk / Don't Walk Pedestrian Control

The N5W signal control is intended to operate a single RYG signal with a single Walk/Don't Walk type pedestrian signal.

5 total outputs will work with incandescent and LED signals including the newest countdown style LED pedestrian signals.

The Walk cycle can be triggered with an external push-button or it can be triggered automatically.

Multiple operation modes are included and can be selected through the on-board 4 position dip switch. See spec sheet for more details!

Features Include:

• 120VAC power (60hz)
• 150W max load per output
• 10A inrush surge @ 16ms
• Speed adjust walk time (from <6-90 seconds)
• 8 selectable modes
• 2 position external push-button connection
• Temp rating -20 to 160 F
• 1 year mfg warranty

Click here for the N5W wiring diagram

Click here for the N5W detailed spec sheet

Products on the shelf subject to prior sale.

Contact us directly for pricing and availability! 316.409.4911
