AFDC1-DC Single Channel Flasher

Description

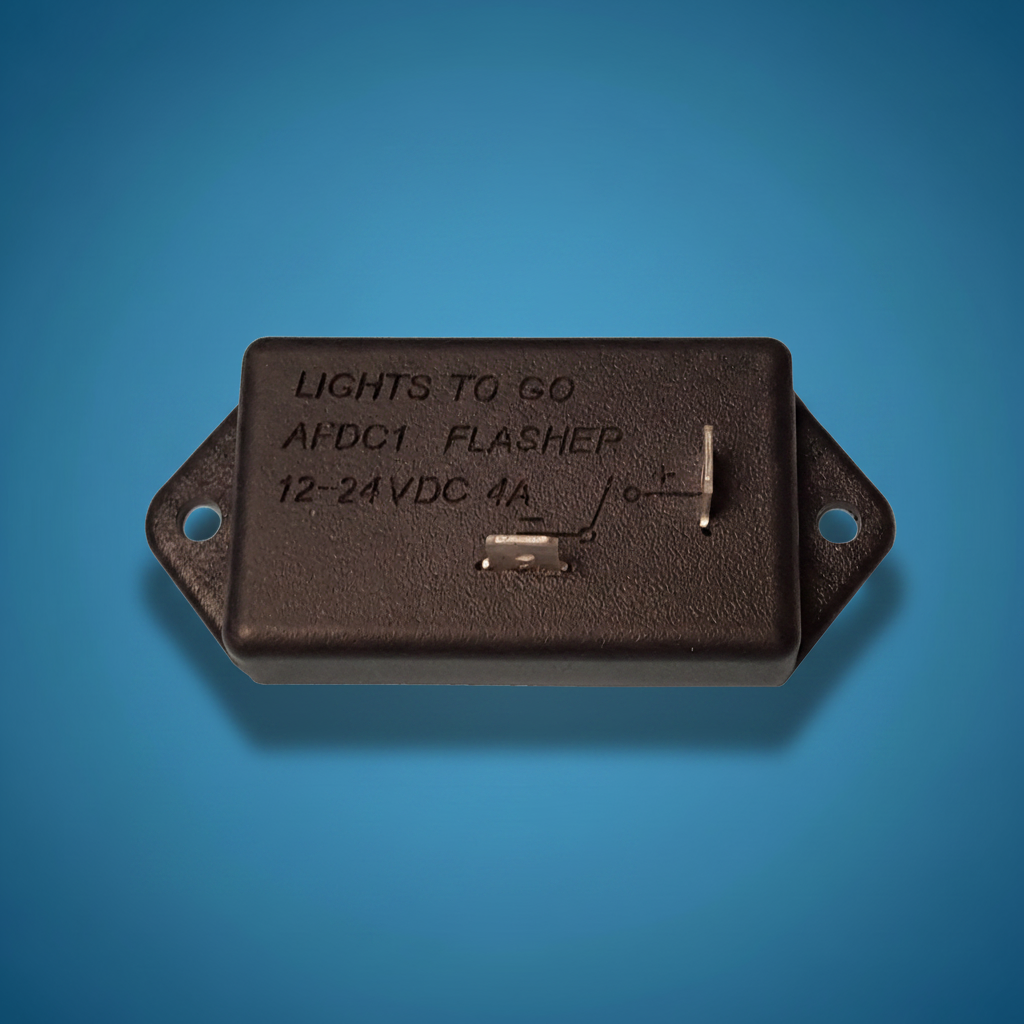

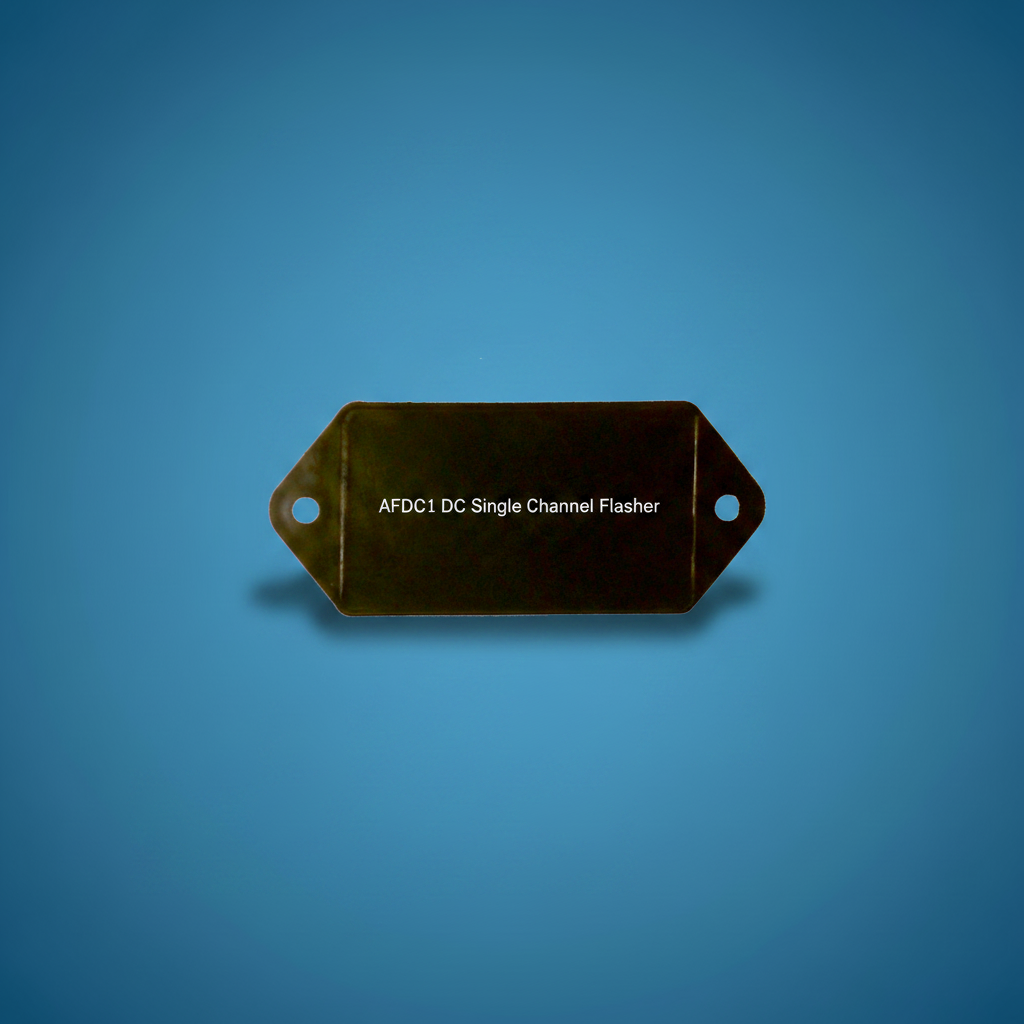

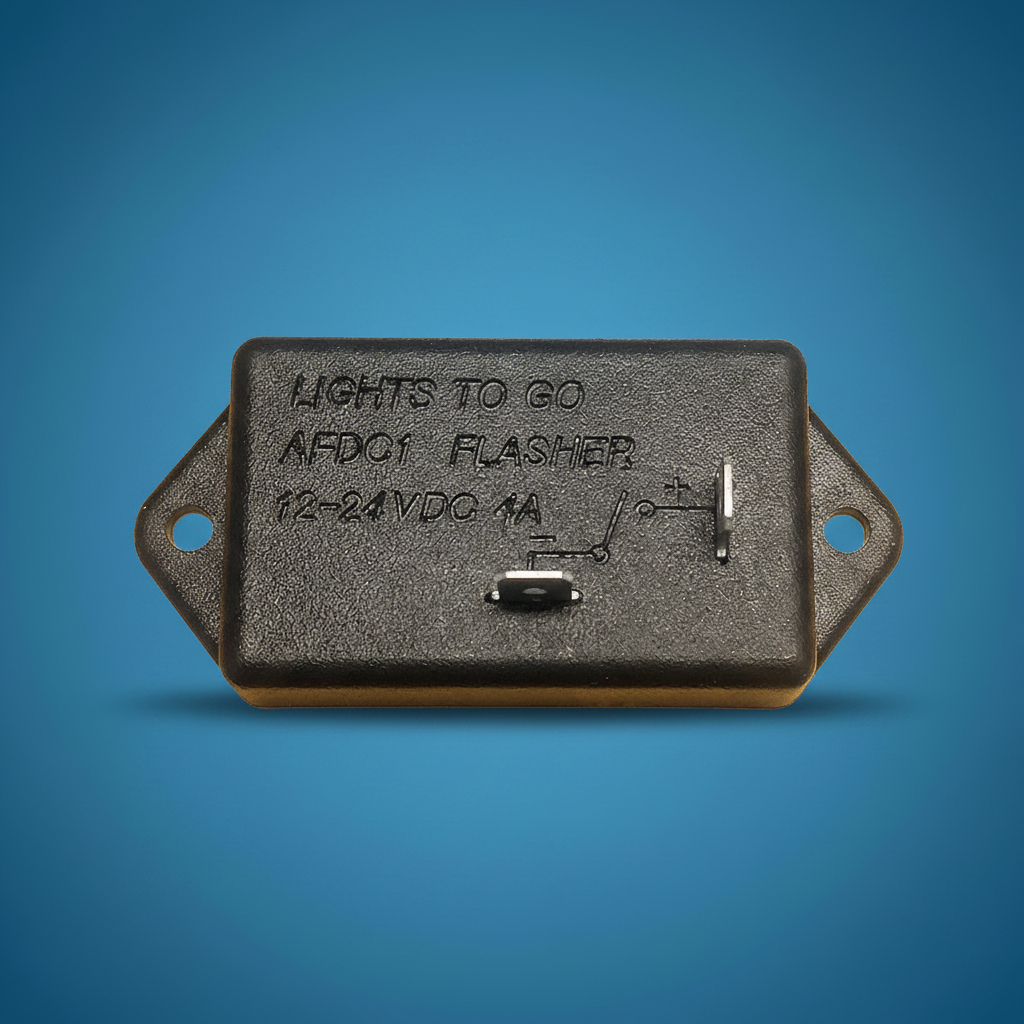

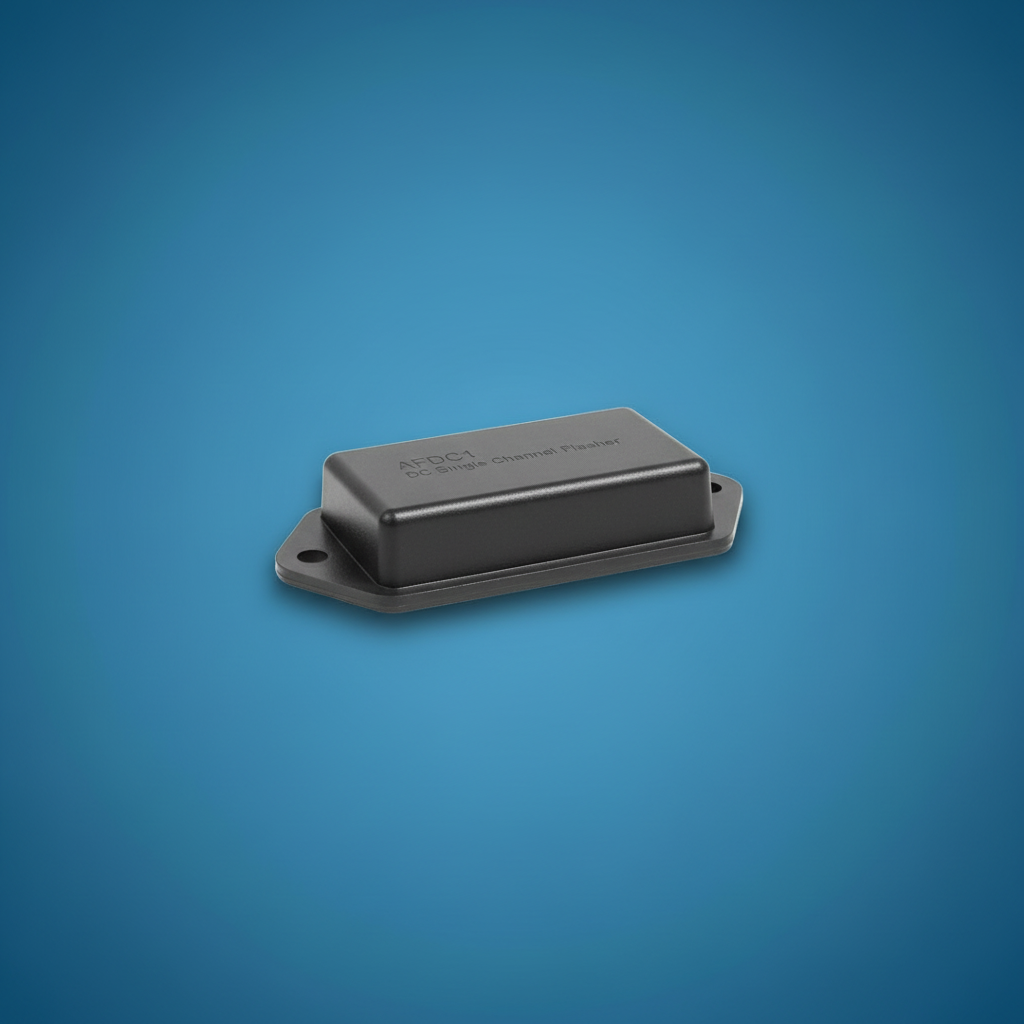

DC Single Channel Flasher — Model AFDC1

Single Channel DC Light Flasher

Made to flash a DC signal light with an absolute minimum of wiring. Operates on 10–24VDC systems and drives loads up to 4A continuously. Just wire in series with the light — entirely solid state and sealed from the environment. Flashes at the MUTCD specified rate of 56–60 FPM and works with both incandescent and LED lights.

Features Include:

• Easy to install — only 2 wires to connect
• Standard quick-connect .250 terminals
• Sealed and encapsulated for reliability
• Operating range: 10–24VDC
• Temperature range: -40 to +70°C

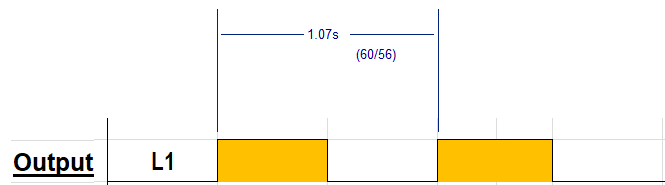

• Fixed rate: 56–60 FPM
• 4A max load output
• 1-year warranty against manufacturing defects

Download the AFDC1 Spec Sheet (PDF)

Download the AFDC1 Wiring Diagram (PDF)

Watch: Typical Application — Single Flashing Beacon

Compatible DC Signal Heads:

HPY200 — Yellow Single Industrial LED Signal (DC)

HPB200 — Black Single LED Industrial Signal (DC)

Want It Pre-Installed?

Add Factory Installation Service — $20.00 — We’ll install your flasher into your signal head before it ships.

Product on the shelf subject to prior sale.

Contact us for pricing and availability: 316.409.4911
