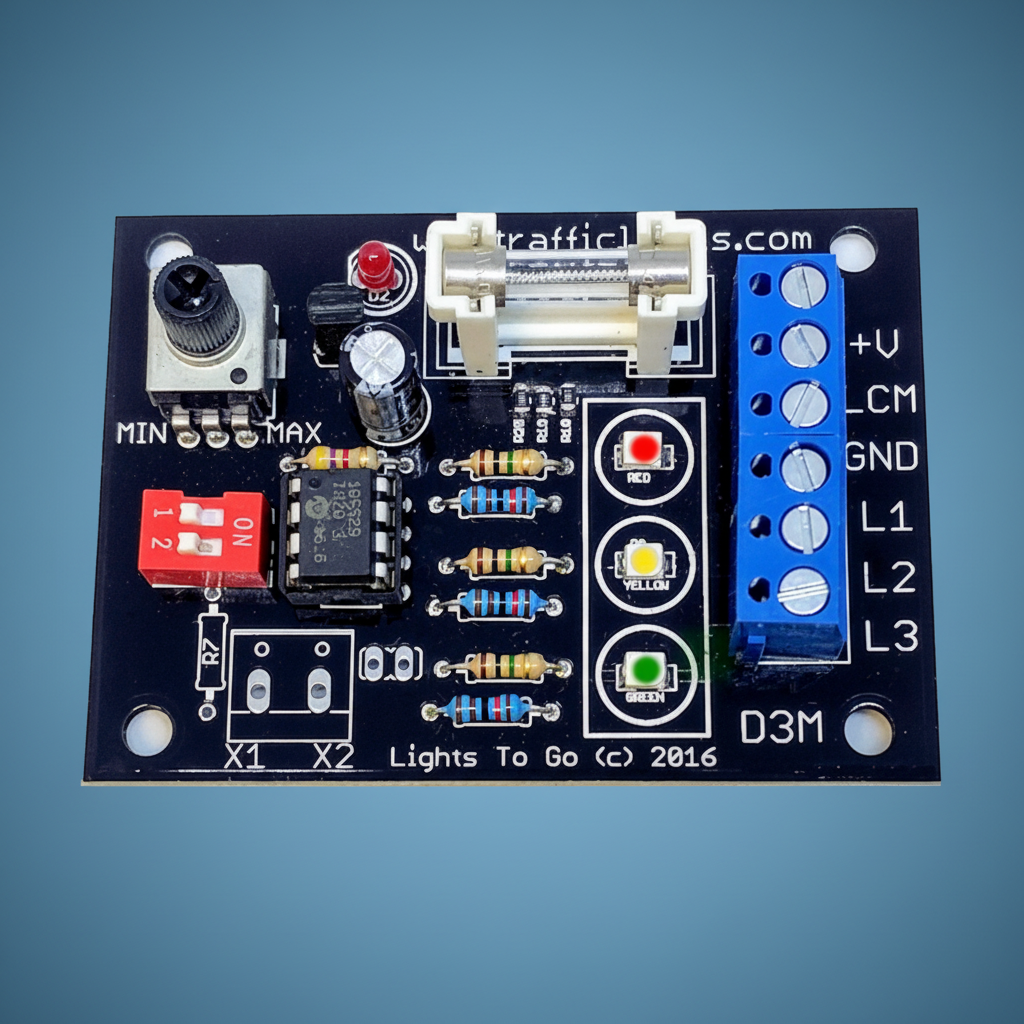

DC 3 Light Traffic Signal Controller-D3M

DC 3 Light Controller — D3M

12–24VDC Red/Yellow/Green Traffic Control Sequencer

Features Include:

• Yellow Flash, Red Flash, and Red/Yellow Alternating Flash modes
• Adjustable cycle speed
• 12–24VDC operation
• Output monitor LEDs — Red, Yellow, Green indication
• Integrated on-board fuse holder
• High reliability speed control
• 50W–100W (4A) per channel output capacity
• Compact control board: 2" x 3"
• Controlled power-up with lamp check
• 6-position screw terminal strip for all electrical connections
• Mounting kit, wiring diagram, and instructions included
• 1-year manufacturer warranty

Also available in equal timing sequence (D3M-E), which makes the duration of each light — Red, Yellow, and Green — identical. Select Regular or Equal Timing from the variant menu above.

Download Detailed Spec Sheet (PDF)

Download D3M Wiring Diagram (PDF)

Need 120VAC with the same functionality? See our N3 AC Traffic Signal Controller.
